Description
Formaldehyde Monitor "if/B", Transducer, 0-10ppm

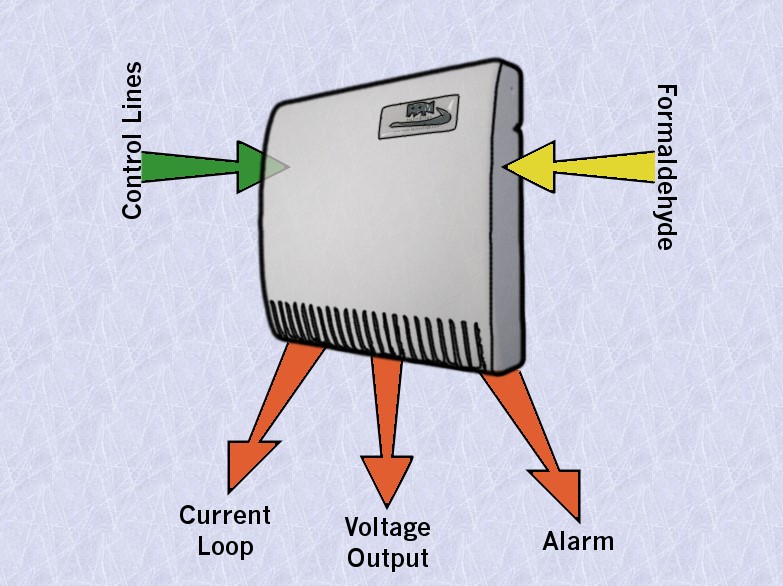

There is a configuration menu available to allow the user to choose output type, operation mode, select output tests, sampling range and also calibrate the Formaldemeter. The menu also allows for the incorporated voltage-less relay to be triggered at various concentrations so that external equipment can be controlled.
Typical Uses:
- Simple integration into existing sensor networks
- PLC control systems
- Stand-alone area monitoring
- Cleanrooms; Packing rooms & Workshops
- Single-point remote monitoring
Modes of Operation:
The if/B can be used in one of three sampling modes, depending on what best suits your needs. These are:
Polled mode
In this mode samples are only taken when a valid pulse is detected on the sample input line. If the instrument has not cleared sufficiently to sample at this point then the sample will be delayed - as soon as the instrument is ready then a sample will be taken. This is ideal for use with PLC or other controller based systems as the sampling rate is controlled by the input lines and the current status is available as logic levels on the output lines.
Continuous mode
This mode does not require any external trigger for sampling. Samples are taken as often as possible by the Formaldemeter. The sampling duration would be dependent on sample concentration (higher concentration samples will take longer to clear and will delay the next sample). This mode is easy to setup and is ideal for applications where no controller based systems are available and the sampling frequency can vary.
Timed mode
This mode does not require an external trigger but unlike the previous continuous mode it uses an internal timer to trigger samples at a set frequency. This can be adjusted by the user between 1 and 60 minutes in increments of a single minute. However, the sampling frequency is not guaranteed as samples may be delayed if the Formaldmeter is not ready to sample at the designated time.
Technical data:
Mains Powered: | 15V-32V DC (15V Mains adaptor supplied) |
Input Concentration: | 0-10ppm (1ppb resolution); 10-30°C; 15-90% RH For higher operational temperatures, ask for technical advice! |
Selectable Input FSD: | 2.5ppm; 5ppm, 10ppm or 100ppm Formaldehyde concentration |
Analogue Outputs: | 0-2.5V; 0-5V; 0-10V; or 4-20V |
Analogue Resolution: | 16 bits (65536 steps from zero to FSD) |
Digital I/O: |
Sample, Data & Error |
Alarm Relay: | Contacts rated at 0.5A@125VAC/2A@30VDC |
Advanced Features: |
Simple administration menu to change settings; Analogue test patterns & calibration output cycle; Formaldmeter calibration routine; Backup of samples stored in non-volatile memory |
-
1 universal power supply
-
1 wall mount bracket
-
1 table top stand
-
1 bag with pieces of polyethylene tube for the intake socket of the instrument
-
user manual
Please note: When ordering please specify which input FSD and which type of analogue output is needed by the user.
Der PPM Technology- Messwandler wurde entwickelt, um das Formaldemeter an Systeme Dritter anzuschließen. Er enthält ein Formaldemeter htV sowie die Interface- Platine und wird zusammen mit einem Stecker- Netzteil und einer Wandhalterung geliefert. Das Interface kann beim Hersteller so konfiguriert werden, dass es verschiedene Ausgangs- Spannungen oder ein 4-20mA- Stromsignal ausgibt und außerdem ein Alarmrelais schaltet. Verschiedene Betriebsarten sind verfügbar, um einer ganzen Reihe von Nutzungen, Anwendungen und Situationen zu genügen. Es gibt ein Konfigurationsmenü, das es dem Anwender ermöglicht, den Ausgangs- Typ, die Betriebsart zu wählen, sowie Ausgangs- Tests und die Abtastrate und auch das Formaldemeter zu kalibrieren. Das Menü erlaubt auch die Ansteuerung des potenzialfreien Relais bei unterschiedlichen Konzentrationen, sodass externe Geräte (z. B. Alarm) geschaltet werden können.
Typische Anwendungen: · Einfache Integration in vorhandene Sensor-Netzwerke · SPS- Regelsysteme · Stand?alone Raumüberwachung · Reinräume; Verpackungsräume und Werkstätten · Einzel- Fernüberwachung |
|
|
Betriebsarten: Das IFB kann in drei Betriebsarten verwendet werden, abhängig davon, was Ihre Anforderungen am besten erfüllt. Dies sind:
Dies ist ideal für die Verwendung mit einer SPS oder anderen Steuerungs- basierten Systemen, weil die Abtastrate durch die Eingangsleitungen gesteuert wird und der aktuelle Status als logische Pegel auf den Ausgangsleitungen verfügbar ist.
Getakteter Modus
|
