Feed-through Terminator, 50 Ohm, 1W, 1GHz

Item number: TA051

Feed-through Terminator, 50 Ohm, 1W, 1GHz

Category: Oscilloscope Accessories


21,42 €

including19% VAT.

Exp. shipping time: ca. 1 week

: 7 workdays

pc.


Description

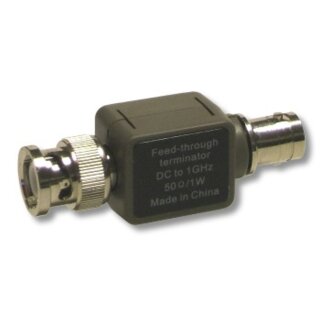

Feed-through Terminator, 50 Ohm, 1W, 1GHz

This feedthrough attenuator is a coaxial terminator with BNC connectors. It is useful for connecting signals from 50 Ohm sources into instruments with high-impedance inputs, such as oscilloscopes.

The feed-through terminator can also be used for recording 4-20mA signals in data logging mode with PicoScope DSOs, which have got BNC input connectors. According to Ohm's law, we get a voltage drop of 0,2 to 1VDC at the 50 Ohmresistor, which can be used then for the voltage recording and parametrization by means of the PicoLog software.

Technical data:

Bandwidth:

DC to 1 GHz

Maximum power dissipation:

1 W

Input impedance:

50 Ohm

Dimension:

56 x 20 x 17 mm (approximately 2.2 x 0.8 x 0.7 in)

Connectors:

BNC, 1 male + 1 female

Construction:

Shielded inner box with plastic shell

Weight:

24 g (approximately 0.85 oz) each
