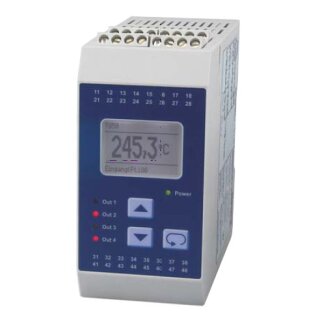

Temperature guard for Pt100/Pt1000 probes and thermocouples of the types J, K, N, S.
2 alarm outputs (SPDT). Peak value indication for minimum and maximum measured temperature are stored in the background and can be read out from the display at any time.
Features:
- Inputs Pt100/Pt1000, thermocouples type J, K, N, S
- Measuring range programmable
- Plaintext supported programming by graphic display
- 128 x 64 pixels LCD with white back-light
- 2 alarm outputs, relay SPDT
- Galvanic isolation between input/output/supply voltage
Note:
For safety applications please use the safety temperature limiter STL 50, certifed to DIN EN 14957 and DIN EN 61508 SIL2.
Technical data:
Auxiliary voltage: 24VDC ±15%
Power consumption: <5VA
Operating temperature: -10...+55°C
CE conformity: EN 60079-0:2006 EN60079-11:2007
EN 61241-0:2006 EN61241-11:2006
IEC61326 05/2004, IEC 61000-4-2,
IEC 61000-4-3, IEC 61000-4-4,
IEC 61000-4-5, IEC 61000-4-6,
IEC 61000-4-8, IEC 61000-4-11,
CISPR16-1/16-2
Inputs:
Fault function: break of wire (RTD Pt100/1000, Thermoelement) and short-circuit (only Pt100/1000) in measuring circuit
Input: Pt100 (3-wire) -100.0 - 600.0°C
Pt1000 (3-wire) -100.0 - 300,0°C
Thermocouples type J (Fe-CuNi) -100.0 - 800.0°C
type K (NiCr-Ni) -150 - 1200°C
type N (NiCrSi-NiSi) -150 - 1200°C
type S (Pt10Rh-Pt) -50 -1600 °C
integrated cold junction compensation
Basic accuracy: <0.1% ±1Digit
Display: grafic LCD Display with128 x 64 pixels, with white back-light
Outputs:
2 x changeover relays SPDT, < 250VAC < 250VA < 2A, cos Phi > = 0.3
< 300VDC < 40W < 2A
Case: Polyamide (PA 6.6, UL94V-0, TS35 acc. to DIN EN 60715:2001-09
Connection: screw terminals 0.14...2.5mm²
Protection class: case IP30, terminals IP20 acc. to BGV A3
Options:
4 changeover outputsSPDT
Analogue output 0/4-20 mA, 0/2-10 V DC
