SIGNALED II, LED Machine Signal Lamp, RGB, 24VDC
While the column form dominates traditional signal lamps, the SIGNALED is a batten luminaire that can be mounted on the machine at the user's eye level.
This a particular advantage with large machines, because it gives the user better sight of the luminaire.
Typically, column-style signal lamps are mounted on top of the machine and thus above the machine operator’s field of vision.
The SIGNALED, by contrast, is used primarily for the rapid identification of conditions directly on the machine.
The coloured light ensures clearly visible and clear attention in security areas.
The SIGNALED can also generate mixed colours of the basic red, green and blue with appropriate control.
For the control of the colours the lamp has a common ground and each one connection for the three primary colours.
Its greatest advantage is that SIGNALED is connected directly to the PLC control system of the machine, which means it can automatically indicate any machine condition, such as a machine stop, tool fault or replenishment requirement.
For assembly, the SIGNALED is simply firmly attached or at an angle of inclination via the supplied brackets.
A cover made of polycarbonate protects the LED technology from dust and splash water.
In order to be able to survive in the vicinity of machines and systems, the LED signal light has the protection class IP54. The SIGNALED can also be used as a machine light in almost any work area without chip bombardment or coolant.
Areas of application:
- Metal processing: As a signal function for machines and systems
- Bending machines
- Automatic punching machines
- Working in automation
- Maintenance and infrastructure, e.g. on roller doors or conveyor belts
- Logistics and clean room signaling
The signal lamps are available with 7 different lengths (please select when ordering):
LE111090-11: 180mm, 3x1,8W, light flux: R: 39 lm; G: 18 lm; B: 61 lm
LE111090-12: 260mm, 3x2,6W, light flux: R: 59 lm; G: 27 lm; B: 93 lm
LE111090-13: 350mm, 3x4,4W, light flux: R: 98 lm; G: 45 lm; B: 154 lm
LE111090-14: 520mm, 3x5,3W, light flux: R: 118 lm; G: 54 lm; B: 186 lm
LE111090-15: 760mm, 3x7,9W, light flux: R: 177 lm; G: 81 lm; B: 279 lm
LE111090-16: 1020mm, 3x10,6W, light flux: R: 236 lm; G: 108 lm; B: 372 lm
LE111090-17: 1520mm, 3x15,8W, light flux: R: 354 lm; G: 162 lm; B: 558 lm
Every SIGNALED comes with V2A mounting brackets
Features:
- Light colour: RGB and mixed colours; white possible as a mixed colour
- Beam angle: 120°
- High energy efficiency
- Very slim and slender lamp body
-
Aluminium housing for heat deduction
- 24VDC connector (machine voltage), M12 sensor plug, A-coded
- Ambient operating temperature range: -10 to +50°C
- Simple retrofitting of machinery
- Mounting using the supplied mounting brackets
- No maintenance periods
- Lifetime of the illuminants: 60.000 h
- Switchings do not impair operating life
- Housing dimensions: width: 30mm, height: 25mm, length: see above
- Housing protection IP54, for machines without chip bombardment or KSS and with little space
- Protection class III (protective extra low voltage)
- Warranty: 3 years
- Made in Germany
Two pairs of brackets are included with every SIGNALED.
Optional accessories:
24VDC power supply

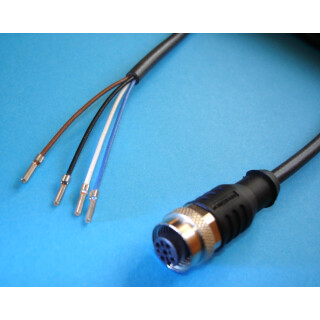

Sensor cable with M12 cable socket
M12 cable socket
Spring clamp galvanized steel (pair)
Spring clamp with magnet (pair)
