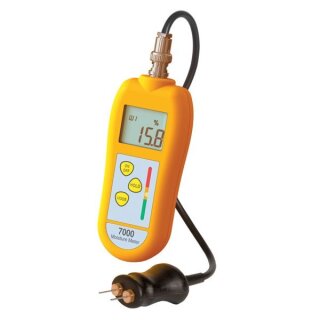

Model 7000, Moisture Meter for Timber & General Building Use, Ext. Probe
- LED bar graph indicates 'OK', 'WARNING' or 'DAMP' levels
- five scales - concrete, plaster, two timber & reference
- specifically designed for the building professionals
- interchangeable two-pin probes
The new model 7000 is a compact, general purpose moisture meter designed specifically for building professionals and tradesmen to check the moisture content in a variety of construction materials. The instrument features a 20-LED bar graph within the keypad which displays current moisture levels; green for 'OK', amber for 'WARNING' or red for 'DAMP'. The instrument incorporates a large, easy to read, LCD display with low battery indication.
The digital meter incorporates five scales:
Scale 1 - Wood 1 (W1) 6.0 to 40.0 %
Scale 2 - Wood 2 (W2) 8.0 to 40.0 %
Scale 3 - Plaster (P1) 0.1 to 15.0 %
Scale 4 - Concrete (C1) 0.5 to 12.0 %
Scale 5 - Linear or Reference (Lin) 0 to 1000
Each unit is housed in a robust ABS case and is powered by three AAA batteries that give a minimum of 350 hours battery life. The instrument will power off automatically after ten minutes, maximising battery life. This feature can be disabled by the user, if required.
Each moisture meter is supplied in a handy-sized, protective zip wallet complete with general purpose two-pin probe with one metre PVC lead and BNC connector. Fitting a protective silicone boot will make your instrument waterproof to IP64 and prevent against accidental damage.
Features:
-
case material: ABS plastic
-
country of manufacture: United Kingdom
-
display hold: yes
-
display type: LCD & LED digital
-
measurement scale: % moisture & linear
-
power saving: auto-off
-
power source: battery powered
-
probe/sensor style: external sensor with connector
-
recommended use: commercial
-
warranty: two years
Technical data:
|
range scale 1
range scale 2
range scale 3
range scale 4
range scale 5
resolution
|
6.0 to 40.0%
8.0 to 40.0%
0.1 to 15.0%
0.5 to 12.0%
0 to 1000
0.1% or 1 (linear scale)
|
|
accuracy
|
±1% moisture content
|
|
battery
|
3 x 1.5 volt AAA
|
|
battery life
|
350 hours
|
|
display
|
12mm LCD
|
|
dimensions
|
25 x 56 x 128mm
|
|
weight
|
130 grams
|
Optional accessories:
- heavy duty hammer probe
- deep wall damp probe
- protective silicone boots
