Victron EV Charging Station NS - Blue
Powerful electric vehicle charging station
The EV Charging Station NS can be operated in both three-phase and single-phase. It delivers a maximum of 22kWAC in three-phase operation and 7.3kW in single-phase operation. It is equipped with a blue front. Alternatively, a black or white front can be purchased separately.
The device is technically identical to the EV Charging Station, but has a new, modern design, available in 3 colours and does not have a built-in LCD screen. Initial setup, configuration and monitoring is done from VictronConnect via Bluetooth and/or the integrated web interface via a WiFi access point or WiFi LAN.
WiFi communication
WiFi: 802.11 b/g/n for configuration, monitoring and control. The internal WiFi module can be configured for both initial setup and monitoring in access point mode or station mode.
Easy operation and control via Bluetooth and the VictronConnect app
At a glance you have full control and overview of all operating parameters and session statistics.
Light ring for quick display of device status

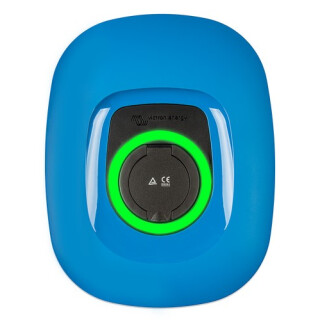

The charging station has a fully programmable RGB light ring around the charging port, which makes it easy to quickly determine the device status. Via the integrated web interface it can be programmed to display different light effects depending on the current state (disconnected, charging, charging, etc.).
Three operating modes are available:
1. Manual mode for configuring the output current
The manual mode allows a configurable output current between 6-32A. The charging power can be controlled in several ways: via the web interface, from a GX device and VRM, and via VictronConnect. This allows charging to be started or stopped manually when a vehicle is connected to the charging station.
2. Automatic mode to ensure maximum efficiency of the PV system
Detects when excess energy is available and only uses that to charge the vehicle.
3. Timed mode to charge the vehicle at specific times
A fully programmable timer allows charging at different times, e.g. overnight when grid power is cheaper.
Integration with GX devices and the VRM
The EV Charging Station NS can be controlled and monitored via a touch display on the GX device, the remote control console and the VRM portal. The VRM portal also provides real-time and custom reports for configurable time periods.
Technical data:
Input voltage range: 170 - 265VAC
Nominal charging current: 32A / phase
Nominal power: 22kW
Current output range: 6 - 32A
WLAN standards: 802.11 b/g/n (only 2.4 GHz)
Self-consumption: 15mA at 230V
Configurable max. current: 10 - 32A
Configurable min. current: 6A up to 1A below the maximum value
Connector type: IEC 62196 Typ 2
GENERAL
Disconnection options: External circuit breaker (40A recommended)
Configurable price/kWh calculator (EUR): Default setting: 0.13 (adjustable)
Control type: Website, GX device via Modbus TCP, VictronConnect via Bluetooth
Light ring: 55 configurable light effects available
Protection: External RCD required
Operating temperature: -25°C to +50°C
Storage temperature: -40°C to +80°C
Humidity: 95% RH, non-condensing
Data communication: Modbus TCP via WiFi, Bluetooth
HOUSING
Housing colour: Light blue (RAL 5012), optional: Black (RAL 9017), White (RAL 9016)
Power connection: 6-10mm² / AWG 10-8
Protection rate: IP44
Ventilation: not required
Weight: 3kg
Dimensions (H x W x D): 372 x 292 x 122mm³
STANDARDS
Security: IEC 61851-1, IEC 61851-22
Detection of relay contact welded
Detection of missing protective conductor
Detection of missing earthing
Detection of short-circuited KP
