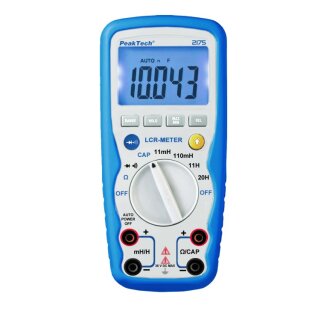

PeakTech 2175, LCR Meter, 4 1/2 Digits

Item number: P2175

  • 4 1/2 digit, 27 mm LCD-display
  • with backlight and data hold
  • big measuring ranges for a wide range of applications
  • modern housing design with non-slip - resistant and shockproof housing
  • MIN/MAX-HOLD
  • relative measurement
  • Diode - and continuity test
  • Auto power off and IP67 dust- and waterproof
  • Category: Instruments for Education and Experiments


    104,24 €

    including19% VAT.

    Exp. shipping time: ca. 1 week

    : 7 workdays

    pc.


    Description

    PeakTech 2175, LCR Meter, 4 1/2 Digits


    This digital LCR meter is our newest development and features a large 4 digit LCD display (max 11000), which provides a fast and accurate reading of measured values.
    The meter is equipped with a large measurement range of up to 110 mF, which is very useful when testing capacitors in audio equipment or in the area of amateur radio.
    Inductance (coils) can be measured up to 20 H and resistors up to 20 MOhm.
    Additionally, the device includes a diode - and continuity test .

    Through the simple operation and the technical capability of this LCR meter, it is the ideal tool in the service - and repairs.

    • 4 1/2 digit, 27 mm LCD-display (max. 11000) with backlight and data hold
    • Big measuring ranges for a wide range of applications
    • Modern housing design with non-slip - resistant and shockproof housing
    • MIN/MAX-HOLD
    • Relative measurement
    • Diode - and continuity test
    • Auto power off u IP67 dust- and waterproof
    • Safety: EN 61010-1
    • Accessories: test leads, carrying case, battery and manual


    Technical data:

    Resistance: 110Ohm/1.1/11/110kOhm/1.1/11/110MOhm; +/-1.2% + 8 dgt.; 10mOhm
    Capacitance: 11/110nF/1.1/11/110F/1.1/11/110mF; +/-3.0% + 10 dgt.; 1pF
    Inductance: 11/110mH/11/20 H; +/-2.0% + 0.2mH; 1H
    Sampling rate: 3 ? 4 x per second
    Operation voltage: 9 V battery
    Dimensions (WxHxD): 82 x 182 x 55 mm
    Weight: 400 g
