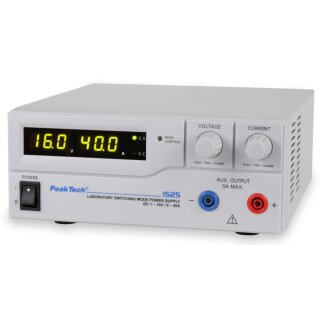

PeakTech 1525, Laboratory Switching Mode Power Supply 1-16 V/0-40 A DC

SKU: P1525
Category: Lab Power Supplies
Manufacturers: PeakTech

Voltage/Current: 1-16VDC / 0-40A

high RFI immunity and excellent EMI

Over load, Over Temperature and Tracking Over Voltage protections

3 user defined, recallable settings for voltage and current values

full Remote control of voltage and current and output control on and off

Isolated ground, Active PFC and high power efficiency, Intelligent fans control from zero to full speed

Rotary Encoder Control Knob with coarse and fine tuning

355,81 €

incl. 19% VAT

Exp. shipping time: ca. 1 week
: 7 Workdays (DE - int. shipments may differ)

Description
Reviews

PeakTech 1525, Laboratory Switching Mode Power Supply 1-16 V/0-40 A DC

This high graded Switching Mode Power Supply is designed for a wide range of applications for telecommunications, laboratory and industry. The power efficient circuit designs allow units to have small form factor with low profile and small footprint casing. The intelligent fan speed control program checks the fan at power on and adapts the right speed to ensure a quiet and safe operation of the power supply at different ambient temperatures and power output levels. The dual action (coarse and fine set) control knobs make tuning the voltage and current level ever so smooth, precise and fast, due to the rotary encoder and microprocessor control. Setting the CC current limiting can be done in open circuit at output poles. The isolated ground construction allow parallel and series connection of power supplies with ease and safety. The three user defined presets of voltage and current limiting levels facilitate quick access to frequently used VI settings. The full remote control functionality offer a wide range of operation possibilities for the industrial and more sophisticated users.

high RFI immunity and excellent EMI
Over load, Over Temperature and Tracking Over Voltage protections
3 user defined, recallable settings for voltage and current values
full Remote control of voltage and current and output control on and off
Isolated ground, Active PFC and high power efficiency, Intelligent fans control from zero to full speed
Rotary Encoder Control Knob with coarse and fine tuning
Safety: EN 61010-1, EN 60950-1
Accessories: power cable and manual

Technical data:

display:	3-digit 15 mm green LED-display
output voltage:	1 ~ 16 V DC adjustable
output current:	40 A / 5 A (main output (rear panel) / front output)
output power:	640 W
residual ripple:	5 mV rms
efficiency:	> 85.5 %
operating voltage:	200 ~ 240 V AC; 50/60 Hz
dimensions (WxHxD):	200 x 90 x 255 mm
weight:	2.6 kg
