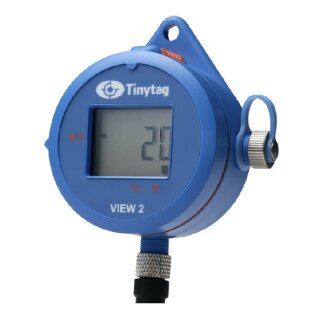

TV-4020, Tinytag View 2, 16 Bit, IP65 Temperature Data Logger with Display, for ext. Probe

TV-4020, Tinytag View 2, 16 Bit, IP65 Temperature Data Logger with Display, for ext. Probe

Tinytag View 2s are all housed in an attractive IP65 case and have an integral on site display. All feature high reading accuracy and resolution, large memories, a fast offload speed and a low battery monitor.

Designed to work with an external thermistor probe, the TV-4020 is ideal for recording and displaying temperatures where a fast response time is needed or the place that needs to be monitored is inaccessible. This unit can also measure higher temperatures than the integral sensor versions.

BS EN12830 compliant, this Tinytag View 2 unit is ideal for the transport, storage and distribution of chilled, frozen, deep-frozen/ quick-frozen food and ice cream.

The external temperature probes are not supplied with the data loggers and need to be ordered extra. A series of thermistor sensors are available (see below).

Popular Applications

• Chill cabinets and fridges
• Building condition monitoring
• Environmental monitoring
• Pharmaceutical storage

Features:

• Self-contained temperature recorder
• BS EN 12830 Compliant (S; A; 1)
• LCD display of current readings
• 30,000 reading capacity
• High accuracy and reading resolution
• Splash-proof housing
• Fast data offload
• Low battery monitor
• User-replaceable battery
• 2 user-programmable alarms

Technical data:
Measuring range:-40°C to +125°C (-40°F to +257°F)
Logger resolution: 16 bit,  0.02°C or better
Display resolution: 0.1°C or 0.1°F
Sensor type: 10k NTC thermistor, external probe (option)
Memory:  30,000 readings, non volatile
Display: 4 digits + indicators
Display modes: °C or °F
Display refresh rate: every 2 seconds
Trigger start: magnetic switch
Delayed start: relative / absolute (up to 45 days)
Stop Options: When full
                          After n Readings
                          Never (overwrite oldest data)
Reading types: Actual, Min, Max
Logging interval: 1 sec to 10 days
Offload: While stopped or when logging in minutes mode
Alarms: 2 fully programmable; latchable
Housing protection: IP65 (splash-proof, only with screw cap on the interface socket and
with screwed on sensor connector)
Operation temperature range: -30°C to +70°C (-22°F to +158°F)
Housing sizes: 85 x 77 x 35mm³ (h x w x d)
Weight: 85g


Optional accessories (please order extra):
SWPK-7 USB-INT Starter pack: TINYTAG EXPLORER Software and
USB port cable with quick start guide in English, French, Italian, Spanish and Swedish.
PB-5001-1M5/3M/5M: Standard thermistor probe with 1.5/3/5m cable or
PB-5002-1M5/3M/5M: Thermistor probe with short response time or
PB-5003-1M5/3M/5M: Thermistor surface probe

ACS-6000 Trigger start magnet (only necessary, if you intend to use this kind of starting the logger runs)
ACS-5001 external audible alarm box
