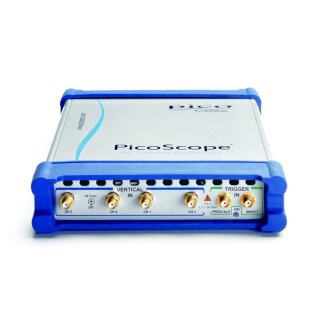

PicoScope 9341-20 Kit, 4-Channel, 16 Bit, 20 GHz Sampling Oscilloscope

PicoScope 9341-20 Kit, 4-Channel, 16 Bit, 20 GHz Sampling Oscilloscope

SKU: PQ093
Category: USB Oscilloscopes
Manufacturers: Pico Technology

sampling oscilloscope

4 channels

20 GHz

16 Bit

29.315,65 €

incl. 19% VAT

Exp. shipping time: ca. 1 week
: 7 Workdays (DE - int. shipments may differ)

pcs

Description
Reviews

PicoScope 9341-20 Kit, 4-Channel, 16 Bit, 20 GHz Sampling Oscilloscope

Sampling oscillloscope kit for signal integrity measurements and characterisation of RF components, SERDES devices, cables, PCBs, and connectors.

4 input channels
20GHz bandwidth, 17.5ps transition time
0.064ps time interval resolution, jitter < 2.0ps RMS + 20ppm delay
16-bit resolution and < 2.0mV RMS noise
2.5GHz trigger bandwidth or 14GHz pre-scaled trigger bandwidth
Industry-leading effective sampling rate 15TS/s, trace length up to 32kS
Integral signal generator: Pulse, PRBS NRZ, PRBS RZ, 500MHz clock, Meander, Trigger out
Eye diagram, eye line, histograms and mask test on NRZ and RZ serial data
PicoSample^TM 3 software for Windows XP (SP2)/Vista/7/8 16 or 32 bit with Active X control interface

For further details please download:

Video introduction to PicoScope 9300 sampling scopes

PicoScope 9300 brochure (5MB)

Small enough to be applied directly to the device under test, or close by, Pico Sampling Oscilloscopes are extremely high-performance and cost-effective measuring instruments for high-speed digital, communications, RF and microwave applications.

Sampling Oscilloscopes achieve better bandwidth and timing resolution than their traditional oscilloscope counterparts. They do this by sampling the signal more slowly, but right at the input connector. A sampling oscilloscope builds a waveform display as the input signal repeats and is not suited to single-shot capture applications. The true power of a sampling oscilloscope is realised when the signals to be measured have a repeating or cyclic pattern, or a steady data rate.

Sampling Oscilloscopes typically have high resolution, an input impedance of 50 Ohm and a single gain range. Active probes and external attenuators are added to achieve high impedance measurement and wider dynamic range.

Big Performance from Little Packages

Trigger rate to 14 GHz
Timing resolution down to 0.064 ps
Fastest available waveform builds!

With the fastest available sampling rate, Pico sampled waveforms and persistence displays are captured three times faster than competing sampling oscilloscopes, which are often bulky and three times the price.

With their powerful and unique trigger, hold-off and acquisition features, Pico samplers can lock to repeating signal features with minimal jitter. All models have trigger pre-scalers (frequency dividers) to allow triggering at up to 14 GHz, while the comprehensive acquisition modes, trigger modes and timebase ranges can display frequency below 100 Hz through to an effective sampling rate of 15 TS/s!

Powerful, Intuitive, Uncluttered Software

Flexible control-menu user interface
Click and drag on display to zoom
Informative colour density profiling
Histograms and numeric statistics

Typical applications:

Telecom and radar test, service and manufacturing
Optical fiber, transceiver and laser testing
RF, microwave and gigabit digital system measurements
Radar bands I, G, P, L, S, C, X, Ku
Precision timing and phase analysis
Digital system design and characterization
Eye diagram, mask and limits test to 10 Gb/s
Ethernet, HDMI 1, HDMI 2, PCI, SATA, USB 2.0, USB 3.0
TDR/TDT analysis of cables, connectors, backplanes, PCBs and networks
Optical fiber, transceiver and laser test
Semiconductor characterization

Remember: The price you pay for your PicoScope Sampling Oscilloscope is the price you pay for everything - we don’t charge you for software features or updates!

Pico's PicoSample^TM software for Windows is included, presenting a user-configurable, intuitive interface on Windows XP, 7 or 8 platforms and all supported display resolutions.

Comprehensive controls are presented in easy-access menus either side of the trace display area. You can select the controls you need, and hide the rest to reduce clutter.

Multiple trace windows support colour or density profiling, vertical or horizontal histograms and 138 pre-defined trace, eye and statistical measurements; up to ten tabulated simultaneously.

167 standard serial data communications masks are included with user margin, editing and custom mask compilation.

61 trace math functions can be applied using buttons or a formula editor.
