PeakTech 1360, Digital Multifunction Oscilloscope

Item number: P1360

  • 100MHz, 12 bit desktop oscilloscope, automatic measuring modes
  • FFT spektrum analyser
  • Multimeter
  • Function & arbitrary generator
  • Frequency counter
  • Touchscreen display
  • Windows software und Android app download
  • USB, WLAN, LAN and VGA interfaces
  • Category: Desktop Oscilloscopes


    1.617,21 €

    including 19% VAT.

    Exp. shipping time: ca. 2 weeks

    : 0 workdays

    pc.


    Description

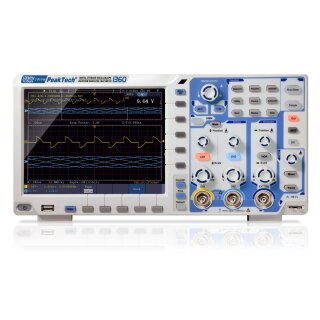

    PeakTech 1360, Digital Multifunction Oscilloscope

    This newly developed and innovative digital storage oscilloscope offers cutting-edge technology and performance as well as multi-functionality for different user groups from the electronics service, development or industrial sector.

    The unit benefits from a clean and fast waveform display thanks to its used 12-bit technology which can be represented by its fast waveform update rate and accurate detection of even the smallest error and variations in waveform display.

    Also the slim case design at only 9cm overall depth of the device and the intuitive operability while delivering excellent image display on the highresolution touchscreen TFT display should be highlighted.

    In addition to the 2-channel oscilloscope a full digital multimeter with voltage, current, resistance and capacitance measuring range is integrated in the device. Additionally arbitrary waveforms can be outputted with the integrated 25MHz waveform generator.

    Furthermore, this device has a LAN interface for integration into networks and a USB interface for direct data transfer to the user's PC. Measurement data can also be saved directly to a USB storage device or to the internal memory with menu-controlled file manager. You can also connect an external video monitor or display over the integrated VGA port, so the display size can be increased for a better visibility.

    About wireless LAN, the device can either be integrated into the existing network or the oscilloscope creates a private network that your Android device found and can be Connected. can be queried in real time over the phone or tablet then the oscilloscope and the generator function.

    • 20 cm (8 ") TFT Touchscreen display with 800x600 pixels
    • 100 MHz bandwidth oscilloscope
    • Vertical resolution 12 bits
    • Windows software and Android App download
    • File manager for internal and external storage
    • Memory length of 40 million points
    • Waveform capture rate of 75,000 wafeforms/s
    • Autoset and Auto Scale function
    • Automatic measurement modes and FFT function
    • 3 3/4 digits digital multimeter
    • 1-channel 25MHz arbitrary waveform generator
    • USB, W-LAN, LAN and VGA interfaces

    Accessories:
    Power cable, 2x 100MHz oscilloscope probes, USB interface cable, software for Windows 2000/XP/VISTA/7/8/10, BNC cable, multimeter test leads, measuring adapter, PDF manual on CD



    Technical data:
    Bandwidth: 100 MHz
    Display: 20 cm (8?) touchscreen TFT with 65536 colours
    Resolution: 800 x 600 pixels
    Channels:



    Oscilloscope :

    Sample rate: 1GS/s
    Vertical resolution: 12 bits
    Record length: 40 M
    Waveform refresh Rate:
    75,000 waveforms/s
    Horizontal scale: 2 ns/div - 1000 s/div, step by 1 - 2 - 5
    Rise time: = 3.5ns
    Input impedance: 1 MOhm ± 2%, in parallel with 15pF ± 5pF; 50 Ohm ± 2%
    Channel isolation: 50 Hz : 100 : 1, 10 MHz : 40 : 1
    Max input voltage: 1 MOhm: =300 Vrms; 50 Ohm: =5 Vrms
    DC accuracy:   1mV; ±03%
    Input coupling DC, AC, and GND
    Vertical sensitivity: 1 mV/div - 10 V/div (at input)
    Trigger type: Edge, Video, Pulse, Slope, Runt, Windows, Timeout, Nth Edge, Logic
    Trigger mode: Auto, Normal and Single
    Automatic measurement: Vpp, Vavg, Vrms, Freq, Period, Week RMS, Cursor RMS, Vmax, Vmin, Vtop, Vbase, Vamp, Overshoot, Phase, Preshoot, Rise Time, Fall Time, +Width, -Width, +Duty, -Duty, Duty Cycle, Delay A?B ?, Delay A?B?, +Pulse Count, -Pulse Count, Rise Edge Count, Fall Edge Count
    Math function: +, -, ×, ÷, FFT
    Waveform storage:
    100 waveforms



    Digital multimeter:

    Display: 3 ¾ digits (max 4000 counts)
    Capacitance: 51.2 nF - 100 uF: ±(3% ± 3 digits)
    Voltage:
    VDC: 400mV, 4V, 400V: ±(1 ± 1 digit); max input:  1000 VDC
    VAC: 4V, 40V, 400V: ±(1 ± 3 digits); frequency: 40Hz - 400Hz; max input: 750VAC (virtual value)
    Current:
    DC: 40mA, 400mA: ±(1.5% ± 1 digit); 10A: ±(3% ± 3 digits)
    AC: 40mA: ±(1.5% ± 3 digits), 400mA: ±(2% ± 1 digit), 10A: ±(3% ± 3 digits)
    Resistance: 400 Ohm: ± (1% ± 3 digits),4 kOhm - 40 MOhm0: ± (1% ± 1 digit)



    Arbitrary Waveform Generator :

    Max. frequency: 25MHz
    Sample rate 125MS/s
    Channels: 1
    Vertical resolution: 14 bits
    Amplitude range: 10 mVpp - 6 Vpp
    Waveform length: 8 K
    Standard waveform:
    Sine, Square, Pulse, Ramp
    Arbitrary waveform:
    Exponential Rise, Exponential Fall, Sin(x)/x, Step Wave, Noise, and others, total 46 built-in waveforms, and user-defined arbitrary waveform



    Interfaces: USB host, USB device, W-LAN, LAN, VGA

    Operation voltage: 100 - 240VAC, 50/60 Hz, CAT II
    Dimensions (WxHxD):
    340 x 177 x 90 mm³
    Weight: approx. 2.6 kg
