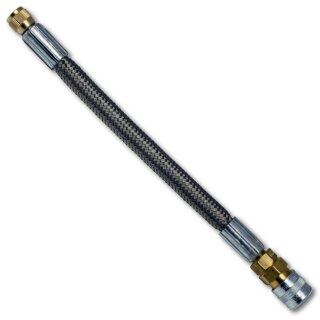

WPS500X Accessory: Gasoline Pressure Fuel Hose with Small Schrader Valve
The TA117 fuel hose is designed specifically for use with the WPS500X pressure transducer, with a strong construction to ensure safe and accurate operation. The hose is terminated at one end with a Foster connector to fit the WPS500X, and at the other end with a Schrader valve to fit standard fuel rails.
Specifications:Conforms to SAE30R9
Maximum working temperature of 115 °C / 239 °F
Maximum pressure rating 500 psi / 34.47 bar
Hose materials: Teflon tube reinforced by outer steel braid
All materials compatible with gasoline and ethanol/ethanol blends
Low permeation
Viton seals in couplers and valves
