UNILED II, Articulated Arm Workplace LED Lamp, 5,200K - 5,700K

Item number: LE120610-01ff

  • 42 SMD LEDs (= 15 watts); 84 SMD LEDs (= 27 watts)
  • Light flux: 1,700 lm  (15W) or 3,100 lm (27W)
  • Luminous power (centre) at a distance of 50cm: 2,000 lx (15W) or 4,000 lx (27W
  • Light colour: 5,200K - 5,700K, daylight white
  • Colour rendering index: >Ra 85
  • 120° beam angle (wide radiation)
  • Infinitely variable dimming with memory function using button on the lamp head (optional)
  • Category: LED Working Lights

    Power/Length

    starting from 487,90 €

    including 19% VAT.

    Exp. shipping time: ca. 2 weeks

    There are variations of this item. Please select the variation you wish.


    Description

    UNILED II, Articulated Arm Workplace LED Lamp, 5,200K - 5,700K

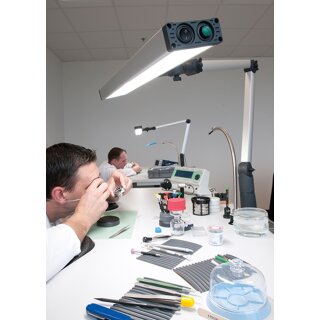

    The articulated arm lamp UNILED II perfectly fits for industrial workplaces, laboratories or large workbenches as well as in the jewelery and watch industry. The lamp is characterized by a high quality aluminium spring arm Due to its rugged metal construction, the UNILED model withstands even harsh conditions in industrial environment. The large overhang of the aluminium arm also allows the illumination of  deeper positions. The highly efficient SMD LEDs  provide a very high quality and homogeneous light over the entire working space, without disturbing hard shadows. The UNILED II provides the right light at every workplace and for every visual task - with max. up to 6,000 lx at 50cm distace. Also infinitely variable and flicker-free dimming is offered as an option.

    The  articulated arm lamp is available with the overall lengths 298mm and 548mm with 42 / 84 LEDs and 15W resp. 27W power.

    The UNILED II is mounted by means of the supplied table clamp. Further mounting accessories are optionally available.

    Features:

    • 42 SMD LEDs (= 15 watts); 84 SMD LEDs (= 27 watts)
    • Light flux: 1,700 lm  (15W) or 3,100 lm (27W)
    • Luminous power (centre) at a distance of 50cm: 2,000 lx (15W) or 4,000 lx (27W)
    • Light colour: 5,200K - 5,700K, daylight white
    • Colour rendering index: >Ra 85
    • 120° beam angle (wide radiation)
    • Infinitely variable dimming with memory function using button on the lamp head (optional)
    • 24 V DC connector, M12 sensor plug
    • Power supply for 230 VAC connection supplied with the lamp
    • luminium body material, anodized in silver, heat dissipation through the main body, no burn hazard.
    • Operation temperature range: -10 to +40°C
    • Lifetime of the illuminants: 60.000 h
    • Lifetime independent on switching cycles
    • Opal-white plastic cover for homogeneous and shadowless illumination
    • Extension arm: 400mm, arm height: 400mm
    • Housing protection: IP 40, protection class III (protective extra low voltage)
    • Connection cable: 1.5m cable on the lamp stand
    • No maintenance periods
    • Warranty: 3 years
    • Made in Germany

    Optional accessory:
    Wall mount
    Adaptor for T-slot profiles
    Screw-on socket (plastic) including screws
    Aluminium adaptor for screw-on socket for existing hole dimensions 45mm x 45mm
    Additional magnifying lens,  3.39dpt.
