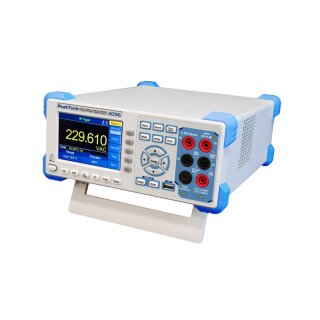

PeakTech 4096, Graphical Bench-Type Multimeter, 5 1/2-digit, USB, LAN, RS-232

Item number: P4096

  • 5 1/2 digits (200.000 counts) 4" TFT-Graphics Display (480x320 Pixels)
  • Up to 150 measurments per second
  • Datalogger for up to 1 Mio. points (internal) or 100 Mio. Points (external) / 5ms Intervall
  • True RMS measurement up to 100 kHz -depending on meas. function
  • Automatic and manual range selection,AVG-, MIN/MAX and relative- function
  • Diode/continuity test and 2- or 3-wire Resistance-Temperature Detector (RTD) or Themocouple measurement
  • Temperature measurement compatible with: Type-B / E / J / K / N / R / S / T or PT100 / PT385
  • Category: Desktop Multimeters


    873,46 €

    including19% VAT.

    Exp. shipping time: ca. 2 weeks

    : 0 workdays

    pc.


    Description

    PeakTech 4096, Graphical Bench-Type Multimeter, USB, LAN, RS-232


    Newly developed precision bench multimeter with TFT graphics-display for high-resolution presentation of the measured values, curves, functional diagrams and many more, up to 150 measurements / second. This model is equipped with a variety of special features such as dual measurement of two different measurement functions, internal or external data logger, histogram, dB, pass/fail, thermal resistors or thermocouple - Measurements, curves, function graphs, average views or bar graphs. The versatile functions are complemented by True RMS measurements up to 100kHz. For control via software or via SCPI protocol, the model has USB-, RS-232 or a LAN interface for the network connection.

    • 51/2 digits (200.000 counts) 4" TFT-Graphics Display (480x320 Pixels)
    • Up to 150 measurements per second
    • Datalogger for up to 1 Mio. points (internal) or 100 Mio. points (external) / 5ms Intervall
    • True RMS measurement up to 100kHz - depending on meas. function
    • Automatic and manual range selection,AVG-, MIN/MAX and relative- function
    • Diode/continuity test and 2- or 3-wire Resistance-Temperature Detector (RTD) or Themocouple measurement
    • Temperature measurement compatible with: Type-B / E / J / K / N / R / S / T or PT100 / PT385
    • Datalogger with internal storage (8 MB) or external USB-disc
    • RS-232, LAN- network connection and USB interface
    • Device-control and data acquisition via SCPI Protocol
    • Safety: EN 61010-1; CAT I 1000 V / CAT II 600 V
    • Accessories: power cable, Interface cable, CD-ROM, test-leads, temp. probe, and operation manual


    Technical data:

    DCV: 200mV/2/20/200/1000V; 0.0015% + 0.0005
    ACV: 200mV/2/20/200/750V; 0.01 % + 0.005
    ACV- TRMS Frequency: 20Hzto 100kHz
    DCA: 200A/2/20/200mA/2/10A; 0.002% + 0.001
    ACA: 20/200mA/2/10A; 0.015% + 0.005
    ACA- TRMS Frequency: 20Hzto 10kHz
    Resistance: 200 Ohm/2/20/200 kOhm/2/10/100 MOhm; 0.0030 % + 0.0005
    Frequency: 20Hzto 1MHz 0.002 % + 0.001
    Capacitance: 2/20/200/2000 nF/200/10000 F; 0,02 % + 0.001
    Temperature: -200Cto +660C (RTD) ; + 0.08% + 0.002 / -200Cto +1372C (Typ-K); 0,5C
    Operation voltage: 110V/240V; 50/60Hz switchable
    Dimension (WxHxD): 235 x 110 x 295mm
    Weight: 3kg
