PE-MR3 Milligauss Meter, Magnetoresistive for Static Magnetic Fields

Item number: PE-MR3ff

  • measuring range: ±1999.99 milligauss
  • external 3-axis probe
  • 2 versions for the accuracy of the sensor orientation: 1° or 1/10°
  • integrated data logger
  • data storage and transfer via USB
  • live data streaming via USB
  • zero button for relative measurements
  • Category: Magnetic Field (DC)

    Accuracy of Sensor Orientation

    starting from 3.222,52 €

    including 19% VAT.

    Exp. shipping time: ca. 2-3 weeks

    There are variations of this item. Please select the variation you wish.


    PE-MR3 Milligauss Meter, Magnetoresistive for Static Magnetic Fields

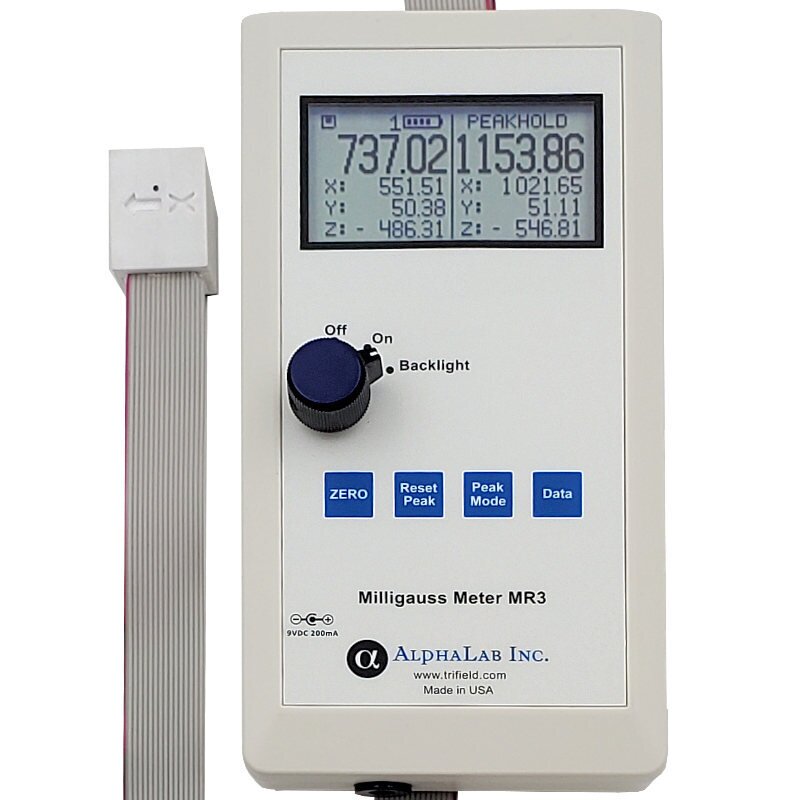

    The 3-axis MR3 Magnetoresistive Milligauss Meter measures and displays the three vector components (X, Y, Z) as well as the magnitude (M) of the static magnetic field (magnetic DC field).

    Update is two times per second.

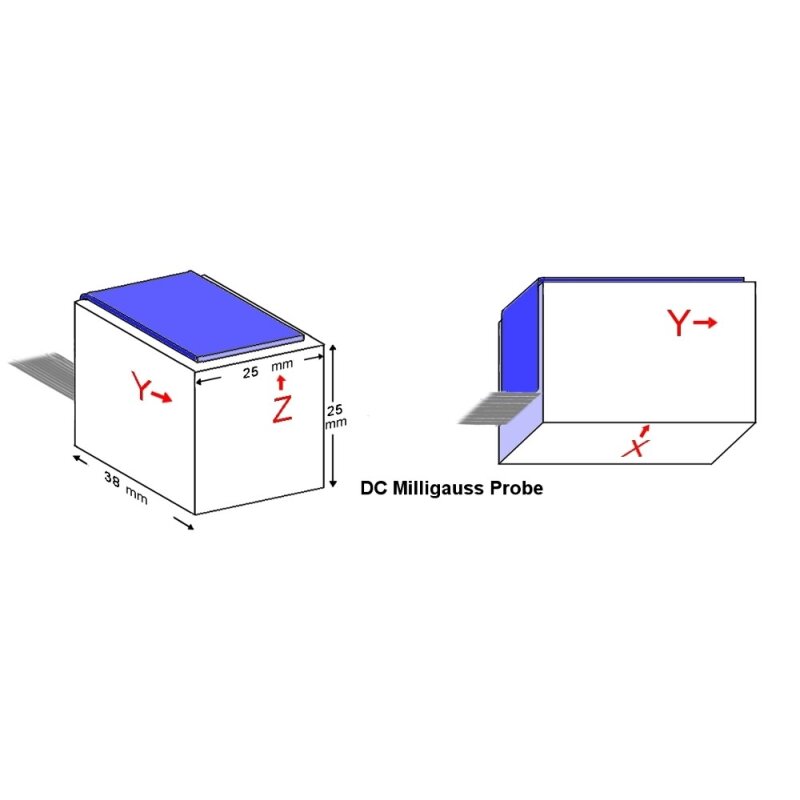

    The three sensors are in a 25 mm (1") cube at the end of a flexible 100 cm (40") cable.
    It can be powered by 4 AA batteries (included) or a worldwide AC adaptor (included).
    It can collect and store data (X, Y, Z and M) for later download or stream data live via USB connector.
    Both the instantaneous values of X, Y, Z and M, and their peak values, are displayed on the meter screen. "Peak" values are the highest values seen since the peak reset button was pressed.
    Maximum error of sensitivity is ±0.5 % of the reading, and the maximum error of the offset is ±0.50 milligauss.
    Range is ±1999.99 milligauss with resolution 0.01 milligauss (or 1 nT) over the full range, displayed simultaneously for X, Y, Z and M.
    There is a "Zero" button which subtracts the instantaneous field for relative (tare) measurements, if required.

    The instrument has a built-in datalogger that records X, Y, Z and M readings for a specified period of time. The data from the memory of the PE-MR3 can later be downloaded into a PC via the USB interface, displayed as a spreadsheet or as measurement curves and also processed further by means of a spreadsheet software.
    When connected to a PC via the USB interface and the free data logging software AlphaApp loaded, the data can be streamed in real time and stored to the hard disk of the PC.

    There are two versions of the Milligauss Meter which differ in the accuracy of the sensor orientation (1° or 1/10°).
    Please select when ordering!

    Technical data:

    Field type: DC static magnetic field

    Measuring range: ±1999.99 mG (=±199.999 nT)

    Resolution: 0.01 mG (=1 nT)

    Accuracy: ±0.5% of the reading

    Sensor: 3-axis

    Sensor alignment precision: 1° or 1/10°, depending on the ordered version
    Datalogger memory: ca. 100,000 data points

    Applications: Scientific research

    Battery: 9V alkaline

    Battery life: ~40 hours (Low Battery indicator)

    Dimensions instrument:

    Dimensions probe: 25 x 25 x 38mm³

    Cable length: 1m

    Total weight:

    Certification: NIST traceable calibration certificate supplied
