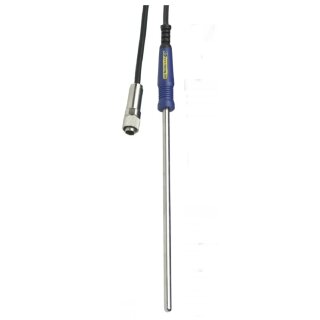

PB-6005, External Standard Pt100 probe for Tinytag Data Loggers
This Pt100 probe with handle and IP68 protection is suitable as exernal sensor for the following Tinytag data loggers:
Tinytag Plus 2 model:
TGP-4104
Tinytag View 2 model:
TV-4104
Tinytag Ultra Radio logger:
TR-3101With a moulded handle and connector, this probe is suitable for use in damp or even submerged applications.
This general purpose probe is used in a wide variety of high temperature applications, from the monitoring of oven temperatures to core temperature of food products.
The probe is available with 1.5m and 3m cable length. Please select when ordering!
Features:
- Fully moulded, waterproof (IP68 rated) design
- 150mm long sheath, 5mm in diameter
- 1.5m or 3m cable length
- 25 second response time (in water)
Technical data:Measuring range: -50°C to +300°C (-58°F to +572°F)
Sensor type: Pt100, 3-wire (class A)
Housing protection: IP68 (waterproof)
Weight: 70g
Response time: 25s to 90% FSD in water
Probe:
Material: stainless steel (316)
Sizes: Ø5mm x 150mm
Operational temperature range : -50°C to +300°C (-58°F to +572°F)
Handle:
Material: Evoprene G 978 & PP7064L1
Operational temperature range: -40°C to +130°C (-40°F to +266°F)
(below -20°C handle can become brittle)
Cable:
Cable insulation: Silicon rubber
Operational temperature range: -60°C to +200°C (-76°F to +392°F)
Connector:
Material: Nickel Plated Brass/Zinc Alloy
Operational temperature range: -25°C to +85°C (-13°F to +185°F)
