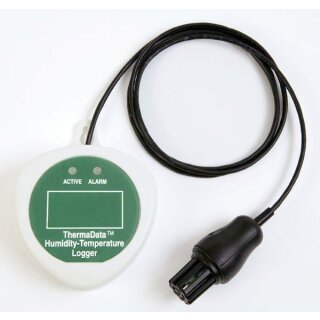

HTBF ThermaData, Humidity & Temperature Logger, Blind, with External Sensors

Item number: 295-062

  • self-contained data logger with external temperature/humidity probe
  • measuring ranges: -20 to +85C / 0 to 100% RH
  • resolution: 0.1C / 0.1% RH
  • LED indication of high & low alarm status
  • records up to a maximum of 16,000 readings
  • simple visual inspection shows if limits exceeded
  • Category: ETI Data Loggers


    164,22 €

    including19% VAT.

    Exp. shipping time: ca. 2-3 weeks

    : 0 workdays

    pc.


    Description

    HTBF ThermaData, Humidity & Temperature Logger, Blind, with External Sensors


    • visual display of high & low alarm status
    • records up to a maximum of 16,000 readings
    • simple visual inspection shows if limits exceeded

    The new humidity and temperature ThermaData loggers are portable data-loggers that measure and record both temperature and relative humidity (%rh) over the range of -20 to +85C and 0 to 100 %rh.

    At programmable intervals, the loggers will record simultaneously both temperature and humidity, recording up to a maximum of 16,000 readings (8,000 humidity and 8,000 temperature).
    The ThermaData loggers with external Sensor offer the choice of either a blind logger (HTBF) or a LCD display logger (HTDF)

    Each logger incorporates a red and green LED, the flashing green LED indicates that the logger is active/logging and the flashing red LED indicates that your customised pre-set alarms have been exceeded.
    The humidity and temperature ThermaData loggers are suitable for a diverse range of applications which include HVAC climate monitoring, QA monitoring of storage areas etc.

    ThermaData logger software:
    The ThermaData logger is connected to a PC via a USB cradle. By clicking the relevant icon the data can be downloaded and displayed either as a graph, table or summary. The information can be analysed by zooming in, storing to disc or exporting in Excel (.xls) or as a text (.txt) file to other software packages.

    Please note: when initially ordering loggers it is necessary to order at least one ThermaData logger cradle.

    Technical Data Temperature / Humidity
    :
    range: -20 to +85C / 0 to 100 %rh
    resolution: 0.1C / 0.1 %rh
    accuracy: 0.5C (0 to +45C) / 2 %rh @ +25C (10 to 90 %rh)
    1C (-20 to +70C)
    1.5C (+70 to +85C)
    hysteresis: n/a / 1 %rh
    sensor type: silicon bandgap capacitance polymer
    memory: 2 x 8,000 readings
    sample rate: 0.1 to 255 minutes
    battery 3.6 volt lithium
    battery life: minimum 2 years
    display: 2 LEDs
    sensor cable length: 1m
    dimensions: 76 x 23mm
    weight: ca. 80 grams
