WPS600, Hydraulic Pressure Transducer, max. 600 bar

WPS600, Hydraulic Pressure Transducer, max. 600 bar

SKU: PP833
Category: Vehicle Diagnostics Accessory
Manufacturers: Pico Technology KFZ Diagnose

Accurately measure up to 600 bar (60 MPa or 8700 psi)

Ultra-fast 100 microsecond response time (0% to 90% of full scale)

Industry Standard M16 x 2 Test point connector

1.120,98 €

incl. 19% VAT

Exp. shipping time: ca. 1 week
: 0 Workdays (DE - int. shipments may differ)

Description
Reviews

WPS600, Hydraulic Pressure Transducer

With high accuracy and a wide measuring range, the WPS600 Hydraulic Pressure Transducer connects to your PicoScope automotive oscilloscope for convenient analysis and diagnosis of pressurised systems.

Accurately measure up to 600 bar (60 MPa or 8700 psi)
Ultra-fast 100 microsecond response time (0% to 90% of full scale)
Internal rechargeable LiPo battery
Industry Standard M16 x 2 Test point connector
Auto zeroing
High noise immunity
Temperature compensated
Not for continuous operation

The pressure variation in hydraulic systems depends on a number of system-related factors.
In addition to static pressures there are among others high frequency pulsating pressures with very steep slopes. The system-specific pressure behaviour can be visualized, documented analysed and optimised by measurements.

The new WPS600 hydraulic pressure transducer with its high accuracy and wide measuring range was designed for the connection to a PicoScope automotive diagnosis oscilloscope.

It allows a comfortable analysis and diagnosis of pressurised hydraulic systems.

Nothing compares to the WPS600
It is not unusual to require a different pressure transducer for each diagnostic test you want to run. The WPS600 eliminates this need by giving you one ultra-high resolution transducer that can be used for a multitude of hydraulic diagnostics applications. With two pressure ranges and a rechargeable Li-Po battery, all enclosed in a durable housing the WPS600 is the cost-effective answer to pressure analysis.
When price, performance and versatility matter, there is nothing that compares to the WPS600 pressure transducer.

The transducer has got a BNC socket for the analogue output of 0-6 volts per measuring range.

Also oscilloscopes of other makes and other processing devices can be connected to this output.

Connecting a PicoScope automotive diagnostics oscilloscope the WPS600 can be set as a predefined probe and all readings are displayed with the appropriate pressure unit. Fast pressure variations can be captured and recorded, stored and printed as curves. These curves can also be stored as reference curves which later can be called up for comparison with faulty curves for troubleshooting.
For the case you don't own a Pico automotive diagnostics oscilloscope yet, we recommend to purchase the 2-channel- PicoScope 4225A together with the WPS600.

Pressure ranges

Two pressure ranges for increased versatility
The two pressure ranges of the WPS600 allow accurate measurement and diagnosis of permanent and non-permanent automotive and industrial hydraulic systems.

Range 1
The first range, 0 to 600 bar (approximately 8700 psi) gives you high resolution and accuracy for high-pressure tests in hydraulic systems.

Range 2
The second range measures from 0 to 60 bar (approximately 870 psi). This range is ideal for low-pressure hydraulic systems and oil pumps.

Technical data:

Hydraulic Inlet
Pressure ranges:	0 to 600bar 0 to 60 MPa 0 to 8700 psi	0 to 60 bar 0 to 6 MPa 0 to 870 psi
Connector:	M16 hydraulic test port
Voltage output
Scaling:	1 V / 100 bar 1 V / 10 MPa 1 V / 1450 psi	1 V / 10 bar 1 V / 1 MPa 1 V / 145 psi
Offset (typical):	Manual zeroing
Connector:	BNC female, fits Pico Technology cable TA130
Performance
Accuracy:	1% of scale
Response time (10% to 90%):	100 µs
Power supply
Type	Built-in LiPo battery, not user-serviceable
Charging current:	500 mA (max.) at 4.75 V to 5.25 V
Charging connector:	USB mini, fits Pico Technology cable TA081
Ambient operating temperature:	60 °C (140 °F) max.
Ambient storage temperature:	60 °C (140 °F) max.
Environmental protection:	Splash-resistant against water, gasoline, diesel and hydraulic fluids. Not immersion-proof.
Weight:	332 g (11.7 oz)
Dimensions:	132 x 64 x 31 mm³ (5.2 x 2.5 x 1.2 in³)

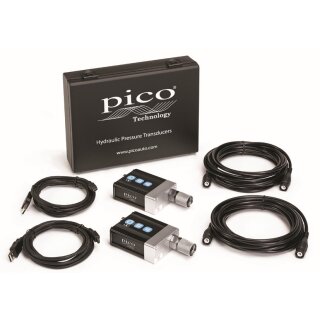

What’s in the pack?

WPS600 pressure transducer
Carrying case
USB cable
BNC to BNC cable
User’s Guide
