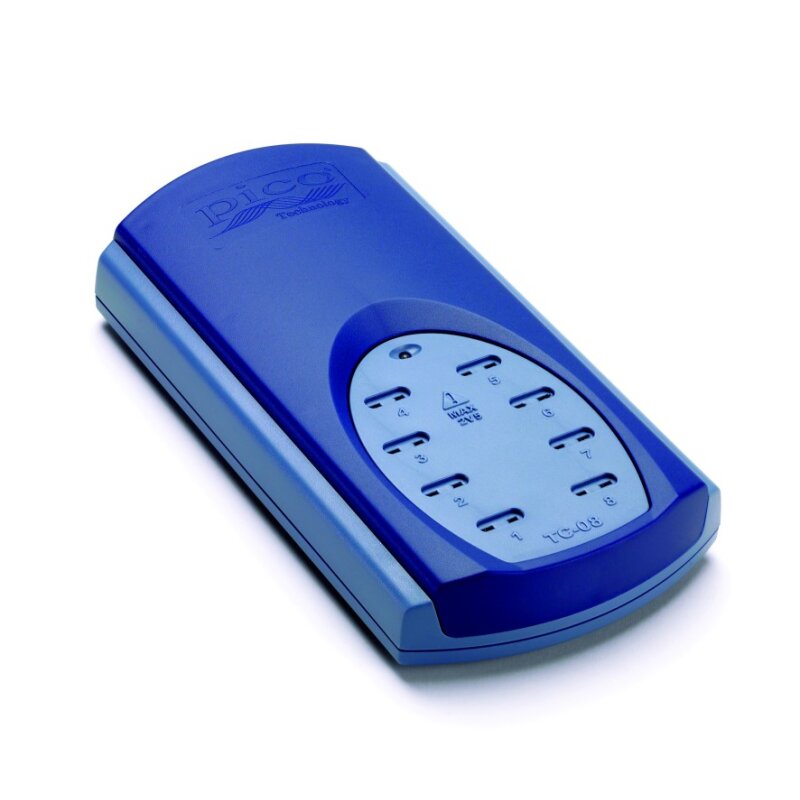

USB TC-08, 8-Channel 16-Bit Temperature Logger for Thermocouples

Item number: PP222

  • 8 channel thermocouple data logger
  • for thermocouple types B, E, J, K, N, R, S or T
  • measures from -270 to +1820 °C
  • 20 bit resolution
  • automatic cold junction compensation
  • high resolution and accuracy
  • Real-time data collection
  • fast sampling rate - up to 10 measurements per second
  • USB 2.0 interface
  • Category: Pico Technology Dataloggers


    415,31 €

    including 19% VAT.

    Exp. shipping time: ca. 1 week

    : 9 - 10 workdays

    pc.


    Description

    USB TC-08, 8-Channel 16-Bit Temperature Logger for Thermocouples

    The TC-08 Thermocouple Data Logger offers industry-leading performance and is an inexpensive answer to your temperature measuring needs.

    • 8 channel thermocouple data logger
    • Measure from 1 to 160 thermocouples
    • Measures from -270 to +1820 °C
    • Automatic cold junction compensation
    • High resolution and accuracy
    • Fast sampling rate - up to 10 measurements per second
    • Collects up to 1 million samples on the hard disk of the PC
    • USB 2.0 interface


    This device is a temperature datalogger with 8 input jacks for standard thermocouples with miniature flat plugs.
    The types of thermocouples (B, E, J, K, N, R, S, T) can be entered via the software and the readings are parameterized accordingly.
    Different thermocouple types can be connected to one device.
    Temperature ranges are dependent on the type of thermocouples used
    The device is also suiltable for recording low voltages in the range of ±70mV.


    All the benefits of USB
    The TC-08 connects to the USB port of a Windows based PC and enables the host PC to automatically detect the TC-08 - avoiding the need for any complex setup procedures. The USB connection also allows the TC-08 to be powered directly by the USB bus - eliminating the need for an external power supply and making the TC-08 ideal for measuring temperatures both in the lab and in the field.

    Measure up to 160 thermocouples simultaneously
    The TC-08's USB connectivity allows up to 20 TC-08 USB data loggers to be used simultaneously on one PC - making the TC-08 ideal for use as a large multi-channel temperature acquisition system with a cost per channel significantly lower than other systems of this size.

    Fast and accurate temperature data acquisition
    With the TC-08 thermocouple data logger your measurements can be made both fast and accurately.
    The low conversion time of the TC-08 means up to 10 temperature measurements can be taken every second. Whilst the high (20-bit) resolution ensures that the TC-08 can detect minute changes in temperature.

    All you need in one easy-to-use unit
    Temperature data acquisition with the TC-08 is very easy - simply plug the TC-08 into a USB port on your computer, connect your thermocouples and you are ready to measure temperatures.

    The easy-to-use PicoLog data acquisition software is supplied with the TC-08 - allowing you to start measuring and recording temperatures with the minimum amount of effort. The intuitive user interface of PicoLog makes it easy for you to set in which time intervals between the single readings you want to take measurements and how many readings per measuring run you want to record


    Technical data:
    Number of channels: 8
    Maximum number of channels using multiple TC-08s: 160
    Conversion time:
    100 ms (thermocouple and cold junction compensation)
    Temperature accuracy: Sum of ±0,2% of reading and ±0.5°C
    Voltage accuracy Sum of von ±0.2% of reading and ±10µV
    Overload protection: ±30V
    Maximum common mode voltage: ±7,5V
    Input impedance: 2 MOhm
    Input voltage range: ±70mV
    Resolution: 20 bits
    Noise free resolution: 16,25 bit
    sThermocouple types supported: B, E, J, K, N, R, S, T
    Input connectors: Miniature thermocouple plugs
    Interface: USB 2.0
    Operating systems for the PicoLog software: Windows XP, 7, 8 and 10
    Housing dimensions: 201 x 104 x 34 mm³


    The device is supplied with a USB 2.0 interface cable and PicoLog software.

    Find suitable thermocouple probes: Please click here!


    resolution: 20 bit
    channels: 8-channel
