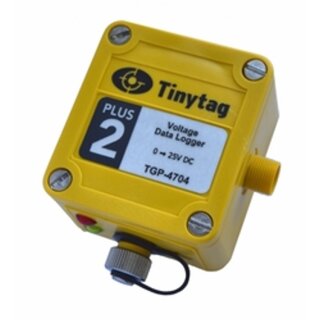

TGP-4704, Tinytag Plus 2, Voltage Datalogger, 0-25VDC, IP68

Item number: TGP-4704

  • battery-powered voltage recorder
  • measuring range: 0-25VDC
  • resolution: 1mV
  • 32,000 reading capacity
  • robust, waterproof case
  • user-settable alarms
  • Category: Weather & Climate

    164,22 €

    including19% VAT.

    Exp. shipping time: ca. 2 weeks

    : 7 workdays



    TGP-4704, Tinytag Plus 2, Voltage Datalogger, 0-25VDC, IP68

    This datalogger can record DC voltages from 0-25V with a resolution of 1mV. An input voltage cable is included for connection to various third-party sensors, meters and voltage sources with output voltages up to 25VDC.
    In case that a sensor is already equipped with a connected cable, suitable optional plugs are available for connection to the datalogger.

    Like all "Plus 2" dataloggers, the TGP-4704 is waterproof with IP68 protectionand can therefore be used outdoors.

    The datalogger stores the measured values in volt units. If the user requires other physical units e.g. mbar, ppm, nT, W etc, which correspond to the sensors used, this is possible as an option upon surcharge when ordering the datalogger. (Because of this "scaling" please contact PSE before ordering.)

    Popular Applications:
    • Third-party Sensors with voltage outputs
    • Pressure
    • Flow rate
    • Rainfall
    • Battery charging/discharging
    • Battery poweredvoltage recorder
    • 32,000 reading capacity
    • High accuracy and reading resolution
    • Robust, waterproof case
    • Low battery monitor
    • User-replaceable battery
    • User-settable alarms
    • Optional audible alarm

    Technical data:
    Measuring range: 0-25VDC
    Accuracy: 0.2% of reading 20mV
    Memory: 32,000 readings, non volatile
    Trigger start: magnetic switch
    Delayed start: relative / absolute (up to 45 days)
    Stop Options: when full
    after n Readings
    never (overwrite oldest data)
    Reading types: Actual, Min, Max
    Logging interval: 1 sec to 10 days
    Offload: While stopped or when logging in minutes mode
    Alarms: 2 fully programmable; latchable
    Housing protection: IP68 (waterproof, only with the screw cap on the interface socket)
    Operation temperature range: -40C to +85C (-40F to +185F)
    Housing sizes:80 x 59 x 34mm (h x w x d)
    Weight: 110g

    Optional accessories (please order extra):
    SWPK-7 USB-INT Starter pack: TINYTAG EXPLORER Software and
    USB port cable with quick start guide in English, French, Italian, Spanish
    and Swedish.
    ACS-6000Trigger start magnet (only necessary, if you intend to use this kind of starting the logger runs)
    ACS-5001external audible alarm box
