TC500-60-, Thermocouple Transmitter
Description

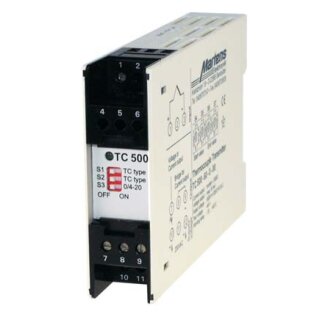

TC 500-60-, Thermocouple Transmitter
To this measuring transducer thermocouples of the types J, K and S can be connected. The selection of the thermocouple type and of the output signal (0/4-20mA or 0/2-20VDC) is done via DIP switches on the front panel.
Features
- Input front side programmable for thermocouple:
type J (Fe-CuNi) from -100 ... +800°C
type K (NiCr-Ni) from -150 ... +1200°C
type S (Pt10Rh-Pt) from 0 ... +1600°C - Integrated cold-junction compensation
- Output signal switch selectable
- Measuring start and end value programmable
by 4 rotary switches in 25° C steps - Fine adjust ±5% with 2 Trim pots
- Accuracy: 0.15%, ±1°C
- Temperature linearized outputs: 0/4 ... 20mA or 0/2 ... 10VDC
- Current burden: max. 500 Ohm
- Full 3-port isolation
Standard case for DIN rail mounting TS35
Floor space: 22.5x75mm (WxH)
Mounting height: 110mm
Floor space: 22.5x75mm (WxH)
Mounting height: 110mm
This measuring transducer is available in 2 versions for different supply voltageswithout surcharge.
Please specify when ordering:
TC 500-60-0: supply voltage: 230VAC ± 10%
TC 500-60-5: supply voltage: 24VDC ± 15%
Thermocouples are not supplied with this article. They need to be ordered separately.
