RayTemp 38, Infrared Thermometer for High Temperatures, -59.9 to +999.9C, 50:1

Item number: 814-038

  • suitable for measurements of small targets
  • measuring range: -59.9to +999.9 C
  • resolution: 0.1C/F
  • optics:50:1
  • Category: Infrared Thermometers


    278,46 €

    including19% VAT.

    Exp. shipping time: ca. 1-2 weeks

    : 0 workdays

    pc.


    Description

    RayTemp 38, Infrared Thermometer for High Temperatures, -59.9 to +999.9C, 50:1

    • robust housing for durability
    • auto-power off & backlight facilities
    • wide temperature range -59.9 to +999.9 C
    • target ratio 50:1 for measuring small targets

    The RayTemp 38 is a professional infrared, gun-shaped, non-contact thermometer with dual laser dot alignment. The thermometer
    incorporates a 50:1 optic ratio (target distance/diameter ratio), this enables users to measure small targets from a distance. The user stands a safe and comfortable distance from the target, points the thermometer at the surface to be measured, pulls the trigger and instantly reads the temperature. Ideal for measuring the temperature of any other item that is difficult to reach. This enables the user to measure most surfaces accurately and quickly.

    This infrared thermometer measures the surface temperature over the range of -59.9 to +999.9 C with a 0.1 C/F resolution. The RayTemp 38 incorporates an auto-power off facility that turns the instrument off after 60 seconds, this function can be disabled,
    if required. Each unit incorporates a backlit custom LCD display that indicates both the temperature and the emissivity. The thermometer features a four-button keypad, allowing the user to select the mode required, i.e. max, min, differential and average temperatures, view the max/min high and low alarms and adjust the emissivity from 0.1 to 1.0 in 0.01 increments (default set at 0.95).

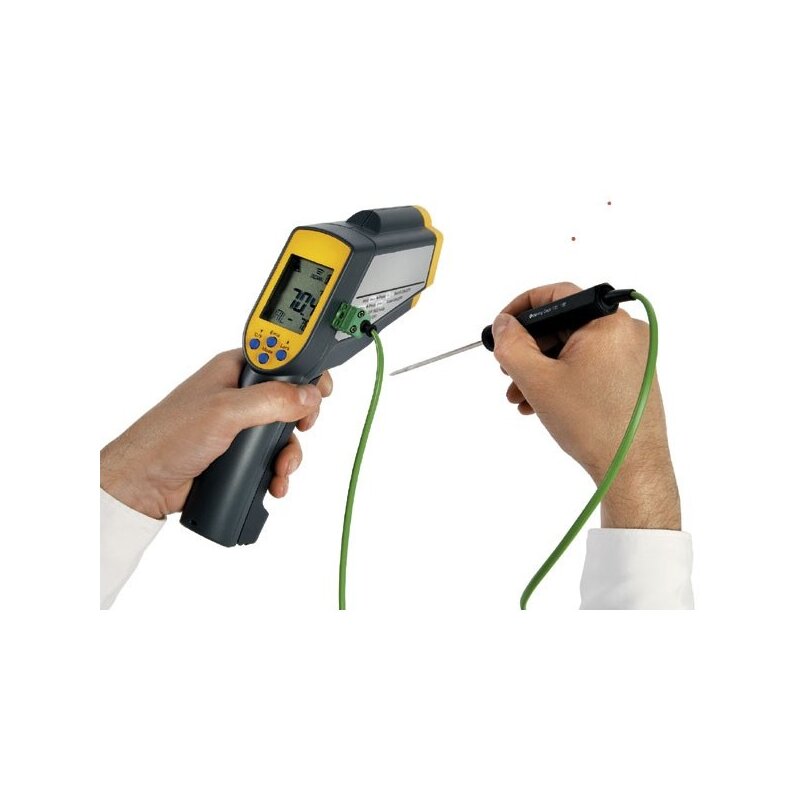

    The RayTemp 38 is two instruments in one as it incorporates a thermocouple socket that will accept a type K thermocouple probe. Suitable probes you find here: Thermocouples Each RayTemp 38 is supplied in a protective ABS carrying case. An optional strong magnetic holder is also available. The holder screws into the bottom of the thermometer's housing, allowing the unit to be mounted onto a metal (iron) surface for continuous monitoring.

    Technical data:
    range: -59.9 to +999.9 C
    resolution: 0.1 C/F
    accuracy - infrared: 2 % of reading or 2 C whichever is greater
    field of view target ratio: 50:1
    emissivity: 0.95 default, 0.1 to 1.0 adjustable in 0.01 increments
    battery: 2 x AAA alkaline
    battery life: 180 hours continuous use
    display: custom LCD with backlight
    dimensions: 47 x 197 x 203 mm
    weight: 386 grams

    The RayTemp 38 is supplied without external temperature probe.

    Optional Accessory:
    814-150 magnetic holder
