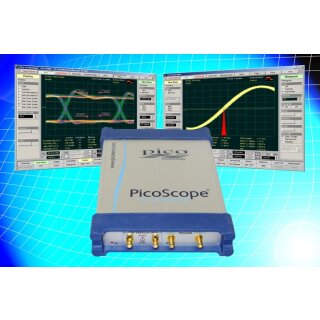

PicoScope 9201A, 2-Ch. Sampling Scope, 12GHz

SKU: PP463

Category: USB Oscilloscopes

Obsolete!

10.489,85 €

incl. 19% VAT , plus

Exp. shipping time: ca. 1 week
: 8 - 10 Workdays (DE - int. shipments may differ)

Exp. shipping time: ca. 1 week
: 8 - 10 Workdays (DE - int. shipments may differ)

Obsolete!

PicoScope 9201A, 2-Channel Sampling Scope, 12 GHz Bandwidth, Sampling Rate: 5TS/s (ETS)

What is a Sampling Scope, and how does it work?

PDF introduction about sampling scopes

...............................................................

Sampling oscilloscopes are special instruments for the display of periodical, repetitive signals with frequencies up to the GHz range.

With the sampling principle (ETS = Equivalent Time Sampling) the signal to be displayed is sampled point by point. The single points are aligned for the display and then result in a curve of the signal.

The sampling scopes offered here are designed for the connection to a computer via the USB port, and thus are working as PC hosted instruments, combined with the supplied comfortable PicoScope software.

The Model PicoScope 9201A has got electrical inputs and a USB port.

Find detailed technical data here:
Brochure PicoScope 9200A Sampling Oscilloscopes

Typical applications include:

Electrical standards compliance testing
Semiconductor characterization
Telecom service and manufacturing
Timing analysis
Digital system design and characterization
TDR/TDT measurement and analysis (PicoScope 9211A and 9231A only)
Electronic mask drawing and display
Automatic pass/fail limit testing
High-speed serial bus pulse response
and more...

PicoScope 9200A Models Compared:

	9201A	9211A	9221A	9231A
12 GHz sampling oscilloscope	X	X	X	X
USB port	X	X	X	X
LAN port		X		X
Clock recovery trigger		X	X	X
Pattern sync. trigger		X	X	X
Dual signal generator outputs		X		X
Electrical TDR/TDT capability		X		X
8 GHz optical-electrical converter			X	X
