PicoScope 2400AB Series - Ultra-Compact 4-Channel Oscilloscopes

Item number: PQ015ff

  • Ultracompact housing: desktop oscilloscope for the shirt pocket!
  • 4 channels
  • Sampling rate up to 1 GS/s
  • Bandwidth: 25-100 MHz
  • Buffer memory: 48kS - 128MS
  • Integrated function generator and arbitraray waveform generator (AWG)
  • Category: Instruments for Education and Experiments

    Models:

    starting from 462,91 €

    including 19% VAT.

    Exp. shipping time: ca. 1 week

    There are variations of this item. Please select the variation you wish.


    Description

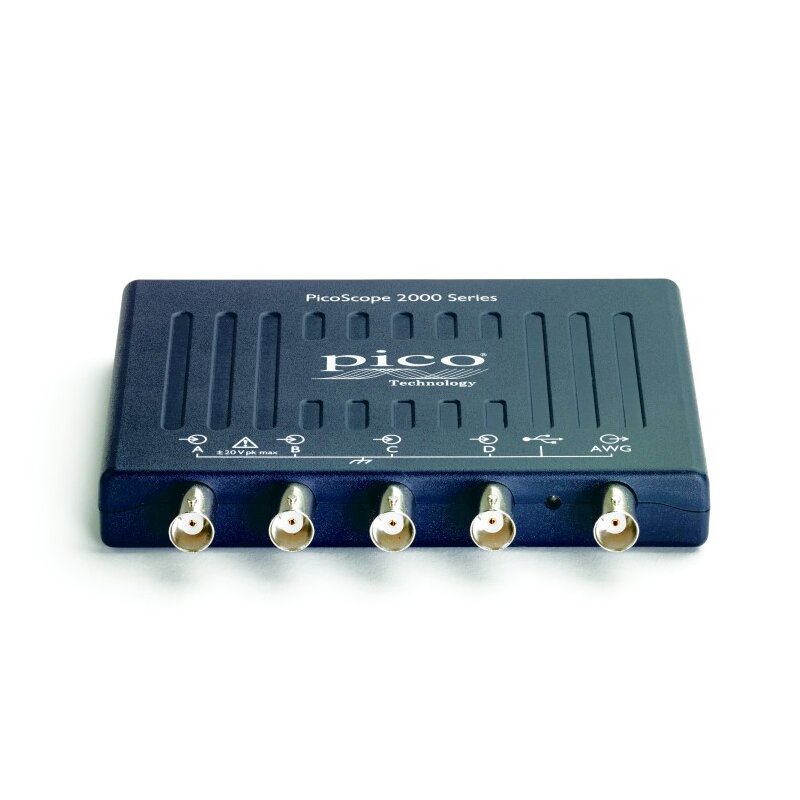

    PicoScope 2400AB Series - Ultra-Compact 4-Channel Oscilloscopes

    The 4 models of the PicoScope 2400AB series offer the following characteristics:
    • Ultracompact housing: desktop device for the shirt pocket!
    • Sampling rate up to 1 GS/s
    • Bandwidth: 25-100 MHz
    • Buffer memory: 48kS - 128MS
    • Integrated function generator and arbitraray waveform generator (AWG)
    • Advanced digital triggers
    • Persistence display modes
    • USB 2.0 port (USB 3.0 compatible) for data transfer and power supply
    • Free comfortable software and upgrades
    • Mask limit testing
    • Decoding of 15 serial bus protocols

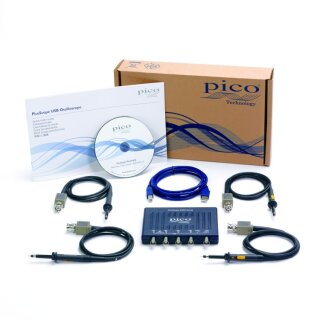

    • Scope probes supplied with the Oscilloscopes (except PicoScope 2204A-D2)
    • 5 years warranty

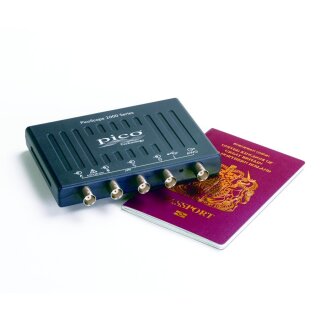

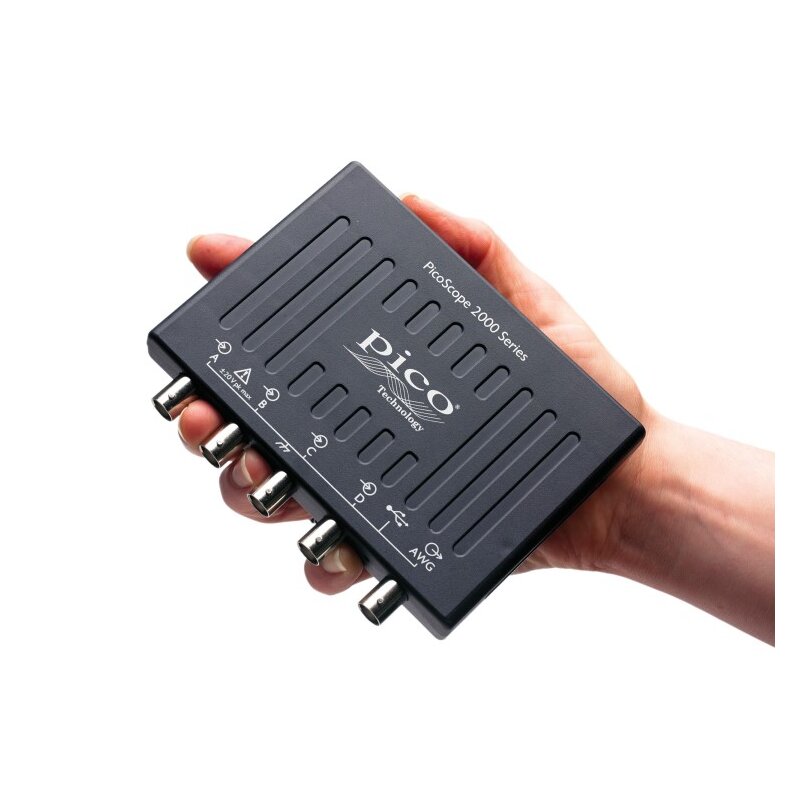

    The 4 models of the new ultracompact oscilloscopes of the PicoScope 2400AB series from Pico Technology have just the size of a passport and are only 19cm thick. These PC oscilloscopes with a power supply via the USB port  and with bandwidths from 25 to 100 MHz and with an arbitrary waveform generator are 80% smaller than the PicoScopes of the predecessing generation. Thus they are perfectly suited for the use underway  and fit into each work coat pocket or laptop case, while they offer all functions and the power of traditional desktop oscilloscopes.

    The technical data enclose a sampling rate of max. 1 GS/s, a settable analogue offset over the whole input range and a fast USB streaming with up to 1 MS/s for the capturing of waveforms with up to 100 million samples. The integrated signal generator can be used as a standard function generator (sine, square, triangle and other signals) with programmable sweep mode or  as a full functional arbitrary waveform generator with 12 bits and 20 MS/s.

    Despite their compact sizes the 4-channel oscilloscopes provide a whole range of functions as a standard via the supplied comfortable PicoScope software, such as a FFT spectrum analyser, a segemented memory for up to 48,000 samples at fast recording, math channels, automated measurements, a coloured persistence display , advanced digital triggers, mask limit testing and serial bus decoding (1-Wire, ARINC 429, CAN, DCC, DMX512, Ethernet 10Base-T, FlexRay, I2C, I2S, LIN, PS/2, UART (RS-232, RS-422, RS-485), SENT (FAST/SLOW), SPI and USB 1.1).
    In addition to the Windows software there are also software versions for Linux and Mac OS X available
    A free software development kit with example codes is supplied with the instruments, which allows your own applications to be developed in languages like C, Microsoft Visual Basic®, National Instruments LabVIEW® and MathWorks MATLAB®. This makes them ideal for a wide range of OEM applications such as power system and machine health monitoring, high-energy physics, and medical electronics applications.

    Detailed technical data you find in the data sheet (8MB):

    Overview of variants:

    Ord. No. Model Bandwidth Sampling rate Buffer memory Function gen. + AWG
    PQ015 PicoScope 2405A 25 MHz 500 MS/s 48 kS 1 MHz
    PQ016 PicoScope 2406B 50 MHz 1 GS/s 32 MS 1 MHz
    PQ017 PicoScope 2407B 70 MHz 1 GS/s 64 MS 1 MHz
    PQ018 PicoScope 2408B 100 MHz 1 GS/s 128 MS 1 MHz

    These Pico instruments are available with calibration certificates at a surcharge!

    The following variants of the former PicoScope 2000 series are no more available and are completely replaced by the new compact series:
    PP419,   PicoScope 2204
    PP420,   PicoScope 2205
    PP800,   PicoScope 2206
    PP801,   PicoScope 2207
    PP802,   PicoScope 2208
    PP823,   PicoScope 2205 MSO
    PP798,   PicoScope 2206 MSO Kit
    PP908,
    PicoScope 2206A
    PP909,   PicoScope 2207A
    PP910,   PicoScope 2208A



    resolution: 8 bit
    channels: 2-channel
    band width: 10 MHz 25 MHz 50 MHz 70 MHz 100 MHz 200 MHz
