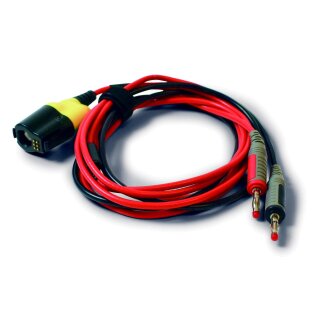

PicoBNC+ Resistance Measuring Lead
This is a brand new test lead and offers a dynamic resistance measurement that can be used as part of the conducted tests for electric and hybrid vehicles.
The TA432 offers a diode test function in addition to the resistance measuriements.
The TA432 has a total cable length of 2m in a Y arrangement, whereby the individual cables each have a length of 1m and each end has a 4mm unshrouded plug.
The lead contains an active power sources and is intended for use on de-energized components and wires only.
Technical data:
Measuring range / resolution:
200 Ohm / 0.1 Ohm
2 kOhm / 1 Ohm
20 kOhm / 10 Ohm
200 kOhm / 100 Ohm
2 MOhm / 1 kOhm (only with PicoScope 7)
Measuring range / Accuracy:
200 Ohm / 2 Ohm
2 kOhm / 20 Ohm
20 kOhm / 200 Ohm
200 kOhm / 5 kOhm
2 MOhm / 50 kOhm (only with PicoScope 7)
Diode test: provides 2V for diode measurement
Maximum voltage: ±30V against PC grounding
Scaling factors and ranges: Automatic start for resistance measurement with high range.
Diode test as a separately set range
Default choice is resistance
The automatic rane does not include the diode range.
Calibration/zeroing requirements: Automatic at start
Cable total length: 2m
