PeakTech 3445, Digital Multimeter with Illuminated Buttons, 6,000 Counts, 1000VAC/DC, TrueRMS, Bluetooth, IP67

Item number: P3445

  • Automatic illuminated function keys and rotary switch
  • Integrated powerful LED flashlight
  • Bluetooth 4.0 interface for data transfer to Android or iOS smartphones
  • TrueRMS measurements
  • ACV, ACV+DCV, DCV measurement and Low Impedance (Lo Z)
  • 3 5/6-digits measurement value display (max. 5999)
  • LCD display with relative-value measurement and 42-segment bargraph
  • Continuity with buzzer and diode test
  • Data-Hold, Min, Max, Peak function and Duty Cycle (Hz / %)
  • Heavy duty case, IP67 dust and waterproof
  • Safety: EN 61010-1; CAT III 1000 V / CAT IV 600 V
  • New App for "Vuzix" Augmented Reality Smart Glasses available

Category: Portable Multimeters


136,26 €

including19% VAT.

: 5 workdays

pc.


Description

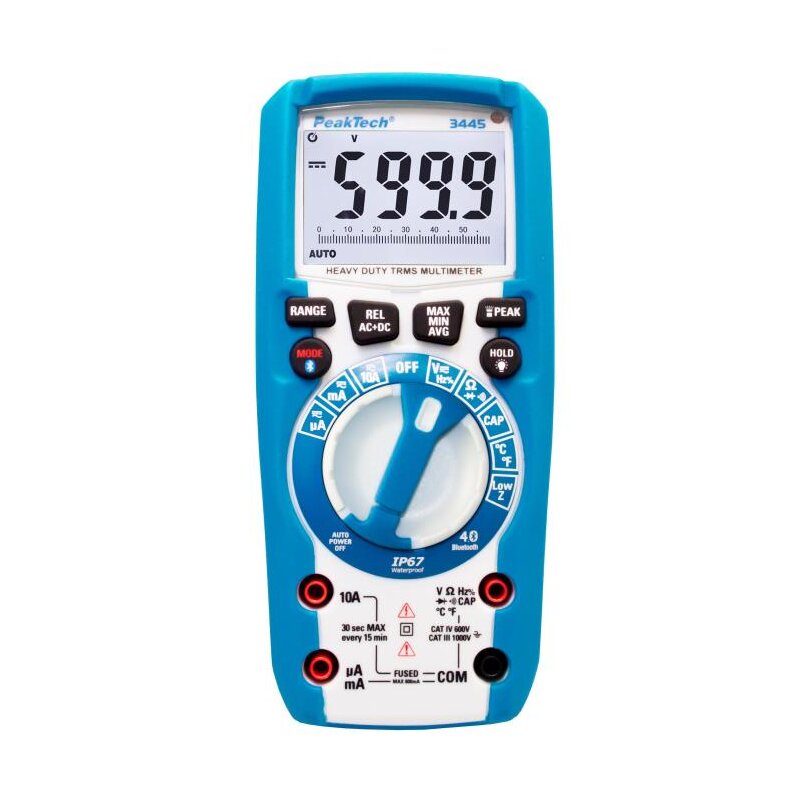

PeakTech 3445, Digital Mulitmeter with Illuminated Buttons, 6,000 Counts, 1000VAC/DC, TrueRMS, Bluetooth, IP67

The new PeakTech 3445 is a newly developed digital multimeter for heavy duty use with a high variety of useful measurement functions.

As unique function, this device has illuminated function buttons and rotary switch, so you can use this IP67 waterproof device even under worst conditions and in total darkness.

In addition to the comprehensive measurement functions for current, voltage, capacity, resistance and many more, this device has a Temperature measurement function, MAX/MIN, Peak and Data-Hold among many other things.

Through these many technical qualities, this device is suitable for the outdoor use of every electrician, technician and engineer in the service, construction or industrial sector.

Accessories: Carrying case, Test Leads, K-type Thermocouple,Batteries and manual
Technical data:
DCV: 600mV / 6 / 60 / 600 / 1000V 0.8% +5 dgt.
ACV + DCV @ 10 MOhm: 6 / 60 / 600 / 1000V 1.5% +20 dgt.
ACV + DCV @ 3 kOhm (LO Z): 6 / 60 / 600 / 1000V 3% +30 dgt.
ACV+DCV frequency range: 50 Hz … 400Hz
ACV: 6 / 60 / 600 / 1000V 1% +5 dgt.
ACV frequency range: 50Hz … 1000Hz
DCA: 600 / 6000A / 60 / 600mA / 10A 1% +3 dgt.
ACA: 600 / 6000A / 60 / 600mA / 10A 1% +3 dgt.
ACA frequency range: 50Hz … 400Hz
Ohm: 600 Ohm/ 6 / 60 / 600 kOhm / 6 / 60 MOhm 1.5% +5 dgt.
Capacitance: 60 / 600nF / 6 / 60 / 600 / 6000F 3% +5 dgt.
Frequency: 10Hz … 10kHz 1.0% +5 dgt.
Temperature: 20.0C … +760C 1.0% +5C
Interface: Bluetooth 4.0 Low Energy
Operating Voltage: 4 x 1.5V AAA Batteries
Dimensions (WxHxD): 75 x 170 x 50mm
Weight: 400g
