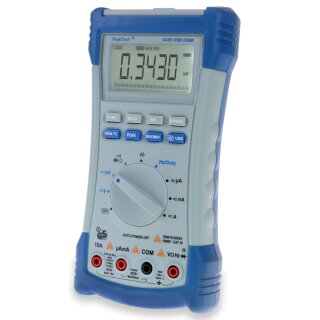

Peak Tech 3430 USB, Digital-Multimeter 4 1/2-digit with USB Port

Item number: P3430 USB

  • 21 mm, 4 1/2-digit LCD-display, backlight and 46-segment bargraph; max. display: 22000
  • True RMS measurement for ACV and ACA
  • USB 2.0- interface to transmit measuring data to the PC
  • Diode-, continuity-test
  • Peak detect
  • DATA-, MAX-, MIN-HOLD
  • Relative function
  • Auto and manual range selection
  • Auto power off and low battery indication
  • Category: Portable Multimeters


    149,82 €

    including19% VAT.

    Exp. shipping time: ca. 1 week

    : 7 workdays

    pc.


    Description

    Peak Tech 3430 USB, Digital-Multimeter 4 1/2-digit with USB Port

    New constructed and GS-approved high-class digital multimeter with 4 1/2-digit multifunction display (max. 22000), 46-segment analogue bargraph and integrated USB-interface for easy connection with computer to realize macro recording, monitoring and capture of transient dynamic data. Full input protection, backlight and easy operating for choosing several measurement functions with the help of the clear view pushbutton section. The True RMS AC voltage and current readings are other most important features of this new constructed multimeter.

    • 21 mm, 4 1/2-digit LCD-display, backlight and 46-segment bargraph; max. display: 22000
    • True RMS measurement for ACV and ACA
    • USB 2.0- interface to transmit measuring data to the PC
    • Diode-, continuity-test
    • Peak detect
    • DATA-, MAX-, MIN-HOLD
    • Relative function
    • Auto and manual range selection
    • Auto power off and low battery indication
    • Safety: EN 61010-1/EK-1, CAT III 1000V/ CAT IV 600V
    • Accessories: test leads, carrying case, USB-interface cable, software for Windows 98/2000/NT/XP/VISTA/ Win7, 32bit/64bit, batteries and manual


    Technical data:

    DCV: 220 mV/2,2/22/220/1000 V; 0.1 mV; +/- 0.05 % + 3 dgt.
    ACV: 220 mV/2,2/22/220/700 V; 0.1 mV; +/- 0.8 % + 4 dgt. / frequency range: 40 ... 400 Hz
    DCA: 220/2200 A/22/220 mA/10 A; 0.01 A; +/- 0.8 % + 4 dgt.
    ACA: 220/2200 A/22/220 mA/10 A; 0.01 A; +/- 1.0 % + 3 dgt. / frequency range: 40 ... 400 Hz
    Ohm: 200 Ohm/2,2/22/220 kOhm/2,2/22/220 MOhm; 0.01 Ohm; +/- 0.8 % + 2 dgt.
    Cap.: 22/220nF/2,2/22/220F/2,2/22/220nF; 1nF; +/- 2.5 % + 3 dgt.
    Freq.: 22/220 Hz/2,2/22/220 kHz; 0.01 Hz; +/- 0.2 % + 3 dgt.
    operation voltage: 4 x 1.5 V (AA) batteries
    dimensions (WxHxD): 102 x 205 x 58 mm
    weight: 390 g
