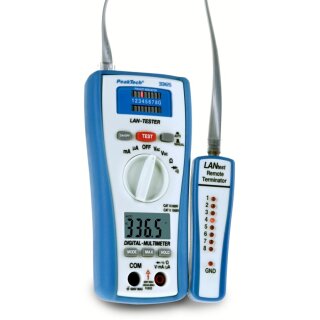

Peak Tech 3365, 2 in 1 LAN-Tester with Digital-Multimeter

Peak Tech 3365, 2 in 1 LAN-Tester with Digital-Multimeter

SKU: P3365

Category: Electricity

Can test the correct pin configuration of 10 Base-T, 10 Base-2 Thin Ethernet cable, RJ45/RJ11 modular cables 356 A, TIA- 568A/568B and Token Ring cable etc.

With remote kit it can remotely test cables up to 300 m away either on wall plate or patch panel.

Can test the ground wire

Measures DC/AC voltage, DC/AC current, Resistance

Continuitytest with buzzer and diode test

79,61 €

incl. 19% VAT , plus

: 6 - 8 Workdays (DE - int. shipments may differ)

: 6 - 8 Workdays (DE - int. shipments may differ)

Peak Tech 3365, 2 in 1 LAN-Tester with Digital-Multimeter

The tester is a newly designed and very practical tester that can easily read the correct pin configuration of cables by com paring one transmitting end to the corresponding receiving end. It is easy to verify the cable continuity, open, short and cross connect.

Can test the correct pin configuration of 10 Base-T, 10 Base-2 Thin Ethernet cable, RJ45/RJ11 modular cables 356 A, TIA- 568A/568B and Token Ring cable etc.
With remote kit it can remotely test cables up to 300 m away either on wall plate or patch panel.
Can test the ground wire
Measures DC/AC voltage, DC/AC current, Resistance
Continuitytest with buzzer and diode test
Safety: EN-61010-1; CAT III 600 V
Accessories: test-leads, carrying case, batteries and manual

Technical data:

DCV	200mV/2/20/200/600 V -0,1 mV; ±0,5 % + 3 dgt.
ACV	2/20/200/600 V -1mV; ±1% + 5 dgt.
DCA	200/2000 A/20/200 mA -0,1µA; ±1,5 % + 3 dgt.
ACA	200/2000 µA/20/200 mA -0,1µA; ±1,8 % + 8 dgt.
Resistance	200 Ohm/2/20/200 kOhm/2/20 MOhm -0,1Ohm; ±0,8 % + 5 dgt.
operation voltage	9 V battery / 2 x 1,5 V AAA (UM-4) batteries
dimensions (WxHxD)	75 x 162 x 44 mm
weight	310 g
