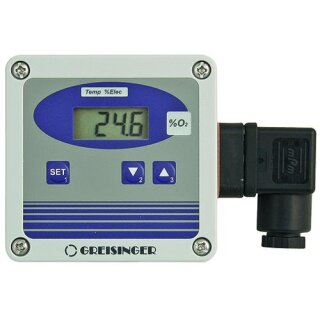

OXY 3690 MP-0-GGO-A1-L01, O2 Transducer for Air Oxygen Measurements, incl. Sensor

SKU: OXY3690MP
Category: Oxygen, O2
Manufacturers: GHM Greisinger

measuring ranges: 0.0 to 100.0% O₂ (gaseous); -20.0 to +50.0°C

output signal: 4-20mA

auxiliary energy: 12 -30VDC

connection: 5-pin jack connector, screwable

721,14 €

incl. 19% VAT

Exp. shipping time: ca. 1-2 weeks
: 7 Workdays (Other countries)

pc.

Description
Reviews

OXY 3690 MP-0-GGO-A1-L01, O₂ Transducer for Air Oxygen Measurements, incl. Sensor

Transducer equipped with the GGO sensor for measurements at atmospere and in systems without over or under pressure.
Additionally the GGO can be screwed impermeable to systems with low over or under pressure.

Technical data:
Measuring range oxygen concentration: 0,0 ... 100.0 % O₂ (gaseous)
Measuring range temperature: -20.0...+50.0 °C
Device accuracy (at nominal temperature 25°C):
Oxygen: ±0.1% ±1 digit
Temperature: ±0.1°C ±1 digit
Output signal (only O₂): 4-20mA (2-wire - standard)
0-10V (3-wire - option)
Electric isolation: input electrically isolated
Auxiliary energy: 12 ... 30 V DC (at output 4-20mA)
18 ... 30 V DC (at output 0-10V - option)
Perm. impedance (at 4-20mA): RA [Ohm] = (Uv [V] - 12V) / 0.02A
Permissible load (at 0-10V): RL > 3000 Ohm
Working condition: 0 to +50°C, 0 to +95%RH (non-condensing)
Storage temperature: -20 to +70°C
Reverse voltage protection: 50V permanently
Display: approx. 10 mm high, 4-digit LCD-display
Housing: ABS (IP65 - with the exception of sensor plug)
Dimensions: 82 x 80 x 55mm (without elbow-type plug and sensor plug)
Electric connection: elbow-type plug acc. to EN 175301-803/A (IP65),
max. wire cross section: 1.5mm², wire diameter from 4.5 to 7mm
Sensor connection: 5-pin jack connector, screwable
Calibration: 1-point calibration in atmospheric air.
Air pressure compensation: 500...2000hPa abs., manually input

Oxygen probe, standard:
Probe design: GGO 370 (closed design)
     Sensor name: GOEL 370
    Sensor type: electrochemical partial oxygen pressure sensor
    Measuring range: 0.0 to 100.0% O₂
    Response time T90: <10 sec., depending on temperature
    Warranty: 12 months (assuming appropriate usage according to the manual)
      Application area: suitable for air and pure oxygen, suitable for high CO₂-concentrations
Temperature compensation: integrated in oxygen sensor
Connection cable: approx. 1.3 m, with 5-pin plug, screwable
Operating pressure: 500 ... 2000hPa (static).
For air and gas-stream use the oxygen sensor GOO.../MU.
Working condition: -5 to +50°C, 0 to +95%RH (non-condensing)
Storage temperature: -15 to +60°C
Dimensions of housing: approx. Ø 40 x 103mm (153mm incl. anti-buckling glanding)
housing with M16x1-screw thread (sensor can be connected to line tubes by means of an included adapter piece)
Weight: approx. 135g

Option upon surcharge:
AV010: output voltage 0-10V
GOO: oxygen sensor GOO 370 / MU, open sensor type, suitable for air and gas-stream.
KL10: sensor connection cable 10m
