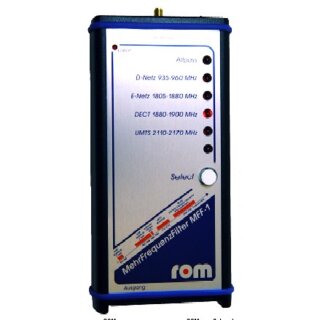

MFF-1 Multi Frequency Filter

Item number: r4059

  • frequency ranges: broadband (1kHz to 3 GHz), D nets, E nets, 3G, WLAN/bluetooth
  • selective Frequency determination
  • easy to use
  • connection between antenna and measuring device
  • Category: Bau-Biology Instruments


    949,62 €

    including19% VAT.

    Exp. shipping time: ca. 1 week

    : 7 workdays

    pc.


    Description

    MFF-1 Multi Frequency Filter (Almost a Spectrum Analyser...)

    • Selective Frequency determination
    • Easy to use
    • Calibrated measurement values (option)
    • Connection between antenna and measuring device

    Our multi frequency filter MMF-1 is easy to connect between the measurement antenna and the RF measuring device (HFR-1, HFR-2, PDM, broad band high frequency measurement device sold in the market). Different frequency ranges can be selected at the push of a button.
    MMF will pass only the selected frequency components!

    5 ranges are available:
    • GSM Base stations for mobile phones D-net (935 - 960 MHz)
    • GSM Base stations for mobile phones E-net (1805 - 1880 MHz)
    • DECT cordless phones (1880 - 1900 MHz)
    • 3G base station for mobile communication (UMTS) (2110 - 2170 MHz)
    • WLAN/ Bluetooth, microwave ovens (2400 - 2500 MHz)
    • Allpass = broadband (all frequencies)

    Technical data:
    Frequency range: Broadband (1kHz to 3 GHz), D nets, E nets, 3G, WLAN/bluetooth
    Filter type: passive
    Typ. attenuation: 6 dB
    Environment temperature: 0 to 40C
    Sizes: 85 x 180 x 35mm
    Weight: 350g (approximately)
    Power supply: 9V alkaline battery
    Current drain: max. 20mA
    Scope of delivery: MFF-1, RF adaptor, battery
