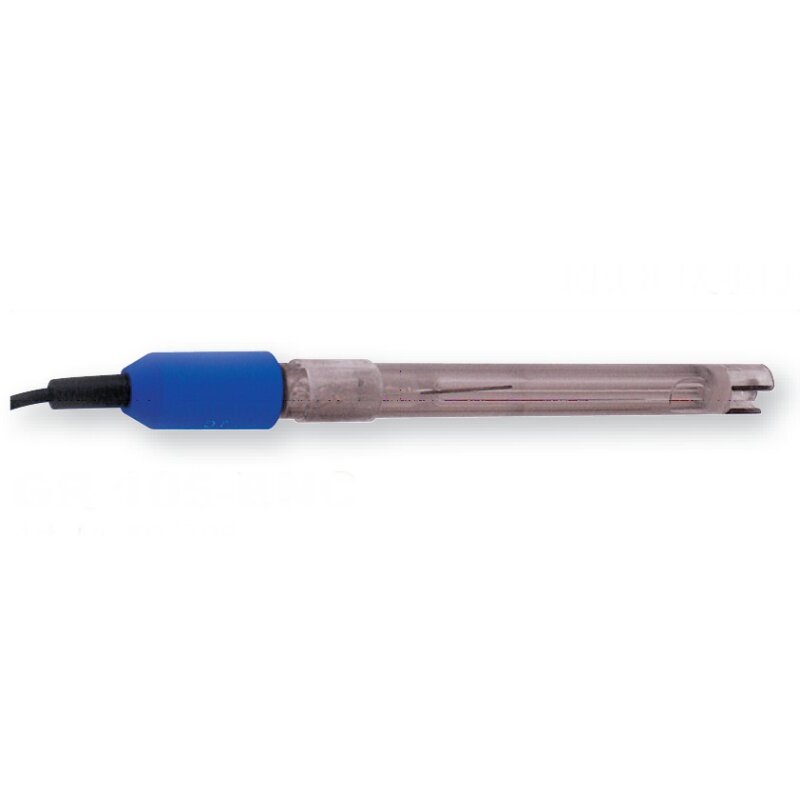

GR105-BNC, Redox Electrode (ORP) with BNC Connector
Description
GR105-BNC, Redox Electrode (ORP) with BNC Connector
Redox electrode with cable and BNC plug. Chinch plug available upon request.Technical data:
Measuring range: ± 2000mV, 0 ... 80°C
Conductivity: >100µS/cm
Temperature measurement: no
Water-proof: no
Pressure resistant: no
Cable: 1m
Electrolyte: 3 mol/l KCL
Diaphragm: 2 x ceramic
Metal electrode: Ų5mm platinum dome
Thread: no
Electrode shaft: Tyril, Ų12mm x 120mm
Minimal depth of immersion: 15mm
Cable length: 1m
Scope of supply: ORP electrode, manual
