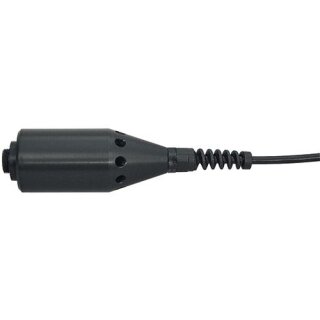

GOO 381, Open Air Oxygen Sensor for low Concentration
Description
GOO 381, Open Air Oxygen Sensor for low Concentration
Because of the special sensor construction the measuring gas streams optimally around the sensor and escapes through holes in the housing into the air. No pressure build-up at slight streaming of the probe, that falsify the result of measurement. Particularly suitable for measuring of gas out of gas-bottle etc. Even measuring indoor-gas concentration is possible.
- suitable for air or gas inflow
- fast temperature compensation
- reinforced diaphragm
- lacquered electronic
Technical data:
Measuring ranges:
Partial oxygen pressure: 0 - 300 hPa O2
Oxygen concentration: 0.0 - 25.0% O2
Temperature: 0.0 - 45.0°C (temperature sensor integrated in the housing)
Sensor element: GOEL 381, integrated in the housing, replaceable
Response time T90: <5s, depending on temperature
Operation life: approx. two years (warranty for sensor element: 12 months)
Operation pressure: 0.5 to 2.0 bar abs.
Connection to instrument: ca. 1.3m cable with mini DIN connector
Operation temperature range: 0 to +45°C (sensor)
Relative humidity: 0 - 95% r.F. (non-condensing)
Storage temperature: -15 to +60°C
Housing dimensions: ca. Ų40mm x 105mm (160 mm incl. anti-buckli. glanding),
Weight: ca. 145g
Standard: PTB-A 18.10 accuracy class 1 for use in motorcar exhaust gas measuring equipment
Scope of delivery: 1 sensor, 1 flow diverter, 1 T-piece, operation manual
