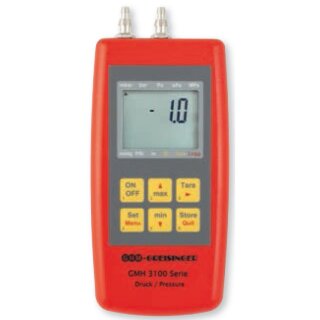

GMH 3181-07, Digital fine manometer with Logger Function, -10.0 to +350.0 mbar

Item number: GMH3181-07

  • same specifications as with the GMH 3161-07, with additional features
  • measuring range: -10.0 to +350.0 mbar (or ±350.0 mbar)
  • relative pressure sensor for over, under or differential pressure
  • peak value memory for capturing pressure peaks of 10ms
  • storage of max. 99 readings on keystroke
  • automatic recording of max. 5,400 readings
  • Min/Max alarm via display, interface and integrated horn
  • real time clock
  • Category: Gases & Liquids


    462,91 €

    including 19% VAT.

    Exp. shipping time: ca. 1 week

    : 7 workdays

    pc.


    Description

    GMH 3181-07, Digital fine manometer with Logger Function, -10.0 to +350.0 mbar

  • integrated relative pressure sensor
  • Suitable for air or non-corrosive or non-ionising gases


    Technical data:

    Measuring Range: -10 ... +350 mbar or ( -350 ... 0.0 mbar *)
    * measuring range possible by changing the pressure connection ports
    Overload: max. 1 bar rel.
    Accuracy (typ. values): ± 0,2% Full Scale (Hysteresis and Linearity)
    ± 0,4% Full Scale (Temperature Influence 0-50°C)
    Datalogger: 99 (manually), 10000 (cycle), adjustable cycle time
    Pressure Units: bar, kPa, MPa, PSI, mmHg
    Special Features: Auto-Off, BAT, Min-/Max-Value, Hold, Tara, Scale, Offset
    Mains Adaptor Socket, Serial Interface
    2 Pressure Connection Ports Ø4mm, Piezoresistive Sensor
    Included in Delivery: 1 Pressure Device with Internal Sensor, 1 Manual, 1 Battery

    Please note: The sensor is not suitable for water!

    Option:
    Device with Ex- protection (Ex II 2 G Ex ib IIC T4 Gb)
