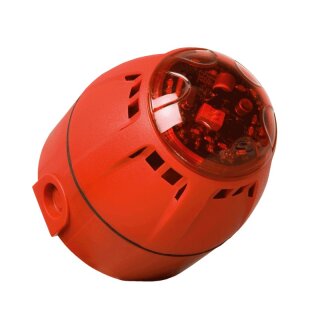

Chiasso 100 Razor, Sounder-Beacon Unit, Deep Base, 24VDC
Description
Chiasso 100 Razor, Sounder-Beacon Unit, Deep Base, 24VDC
- High sound level
- Low current consumption
- Exclusive design
- 39 tones user-selectable
- Automatic synchronisation
- One tone alarm
- Volume control
- Flexible capabilities
- LED technology
- Controlled separately
- Expandable to 230VAC
Application areas: Industry, fire alarm, security alarm, railways, seafaring etc.
Technical data:
| Sound pressure: | 67-100dB(A) / 98dB(A) at DIN tone |
| Current drain: | 9-35mA / 4-6mA |
| Operation temperature: | -20°C to +70°C |
| Material: | Housing: ABS FR; lens: PC |
| Colour: | Housing: red or white; lens: red, yellow, green, blue (please specify when ordering!) |
| Abmessungen: | Ų = 90mm; H = 97mm (Deep Base) |
| Number of user-selectable tones: | 39 |
| Operation voltage | 9-28VDC |
| Housing protection: | Deep Base: IP65 |
