3D- ISOMAG, Professional Instrument for Alternating Magnetic Fields

Item number: r5109c

  • Isotropic(3D) measurement of alternating magnetic fields
  • Measuring range: 20,000nT
  • Resolution: 1nT
  • Frequency range: 10Hzto 400kHz
  • Made in Germany
  • Category: Electrical & Magnetic AC Fields


    2.265,76 €

    including19% VAT.

    : 5 workdays



    Description

    3D- ISOMAG, Professional Instrument for Alternating Magnetic Fields

    The isotropic(3-dimensional) professional device offers a wide frequency range and is easy to use thanks to the included software.
    Applications such as measuring magnetic field emissions in a wide range of sources such as e.g. power lines, transformers, office equipment, household appliances and various types of electrical and electronic devices are possible.

    In additoin to the 3D measurement, single channel measurements are also possible. The measured values are transferred and displayed via a USB interface cable to a PC or laptop (not supplied).

    Applications:
    + Building biology
    + Personal protection
    + Control of low-field electrical installations
    + Research and teaching

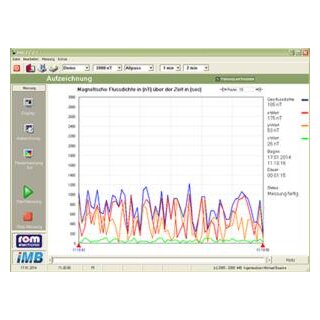

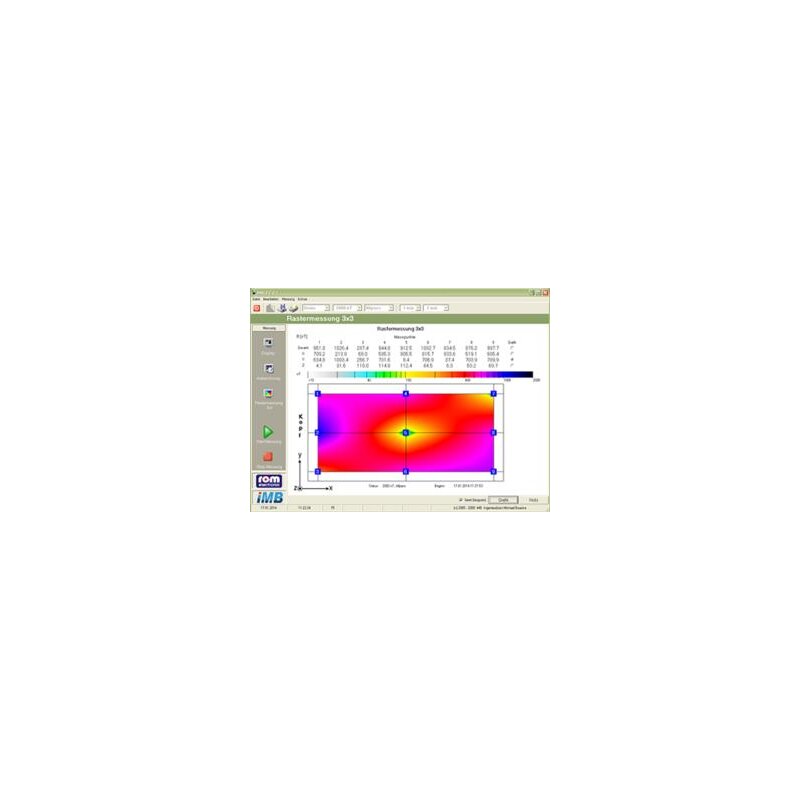

    With the supplied software of the 3D measuring probe the data of the measuring directions x,y and z can be transferred to the computer at the same time with the push of a button using the "raster measurement" function. From these, the software generates a graphic view that very clearly shows the field distribution in the room and thus gives an indication of the location of the field source.


    Technical data:
    Frequency range:10Hzto >400kHz
    Measuring range: 1nT-20,000nT
    Filters:Low pass:16Hz,high pass:50Hz-400kHz, 100Hz-400kHz, 2kHz-400kHz
    max. measurement sensitivityt: 1nT
    Uncertainty of measurement: Basic accuracy: 5%; 2% of full scale
    Display:via PC software
    Ambient temperature: -10Cto +40C
    Dimensions: 110mm x 110mm x 110mm
    Weight: ca. 600g

    Scope of delivery:
    Sensor 3D- ISOMAG
    Calibration certificate
    Tripod holder made of plastic with tripod thread
    Software for Windows XP, Vista, 7, 8, 10

    Optional accessory:
    3D Isomag interface adaptor from RS-232to USB, inclusive cable
